ast_channel Struct Reference

Main Channel structure associated with a channel. More...

#include <channel.h>

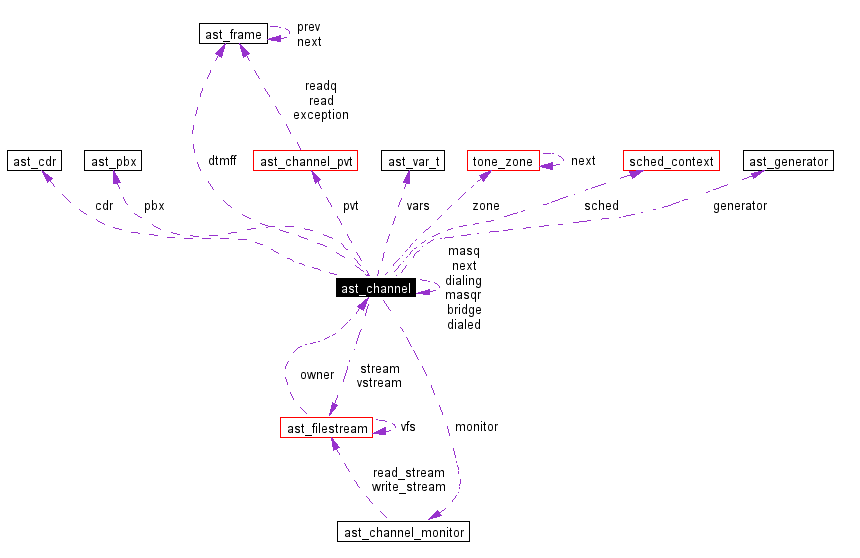

Collaboration diagram for ast_channel:

[legend]

Public Member Functions
	AST_LIST_HEAD (varshead, ast_var_t) varshead
Data Fields
char	name [AST_CHANNEL_NAME]
char	language [MAX_LANGUAGE]
char *	type
int	fds [AST_MAX_FDS]
char	musicclass [MAX_LANGUAGE]
void *	generatordata
ast_generator *	generator
int	writeinterrupt
ast_channel *	bridge
ast_channel *	dialed
ast_channel *	dialing
int	reversedialed
ast_channel *	masq
ast_channel *	masqr
int	cdrflags
int	blocking
int	_softhangup
int	zombie
time_t	whentohangup
pthread_t	blocker
ast_mutex_t	lock
char *	blockproc
char *	appl
char *	data
int	exception
int	fdno
sched_context *	sched
int	streamid
ast_filestream *	stream
int	vstreamid
ast_filestream *	vstream
int	oldwriteformat
int	timingfd
int(*	timingfunc )(void *data)
void *	timingdata
int	_state
int	rings
int	stack
int	nativeformats
int	readformat
int	writeformat
char *	dnid
char *	callerid
char *	ani
char *	rdnis
int	restrictcid
int	callingpres
char	context [AST_MAX_EXTENSION]
char	macrocontext [AST_MAX_EXTENSION]
char	macroexten [AST_MAX_EXTENSION]
int	macropriority
char	exten [AST_MAX_EXTENSION]
int	priority
void *	app [AST_CHANNEL_MAX_STACK]
char	dtmfq [AST_MAX_EXTENSION]
int	deferdtmf
ast_frame	dtmff
ast_channel_pvt *	pvt
jmp_buf	jmp [AST_CHANNEL_MAX_STACK]
ast_pbx *	pbx
int	amaflags
char	accountcode [20]
ast_cdr *	cdr
int	adsicpe
char	call_forward [AST_MAX_EXTENSION]
tone_zone *	zone
ast_channel_monitor *	monitor
unsigned long	insmpl
unsigned long	outsmpl
unsigned int	fin
unsigned int	fout
char	uniqueid [32]
int	hangupcause
ast_var_t *	vars
unsigned int	callgroup
unsigned int	pickupgroup
int	flag
ast_channel *	next

---

Detailed Description

Main Channel structure associated with a channel.

This is the side of it mostly used by the pbx and call management.

Definition at line 56 of file channel.h.

---

Member Function Documentation

AST_LIST_HEAD (  varshead  , ast_var_t  )

---

Field Documentation

int _softhangup

Whether or not we have been hung up... Do not set this value directly, use ast_softhangup Definition at line 94 of file channel.h. Referenced by ast_autoservice_stop(), ast_check_hangup(), ast_dsp_process(), ast_pbx_run(), ast_queue_hangup(), ast_read(), ast_softhangup_nolock(), ast_waitstream(), ast_waitstream_fr(), ast_waitstream_full(), and ast_write().

int _state

State of line -- Don't write directly, use ast_setstate Definition at line 134 of file channel.h. Referenced by __ast_request_and_dial(), ast_answer(), ast_async_goto(), ast_cdr_init(), ast_control_streamfile(), ast_do_masquerade(), ast_pbx_outgoing_app(), ast_pbx_outgoing_exten(), ast_prod(), ast_request(), and ast_setstate().

char accountcode[20]

Account code for billing Definition at line 194 of file channel.h. Referenced by ast_cdr_init(), ast_cdr_setaccount(), and ast_cdr_update().

int adsicpe

Whether or not ADSI is detected on CPE Definition at line 198 of file channel.h. Referenced by ast_do_masquerade().

int amaflags

Set BEFORE PBX is started to determine AMA flags Definition at line 192 of file channel.h. Referenced by ast_cdr_init(), and ast_pbx_run().

char* ani

Malloc'd ANI Definition at line 154 of file channel.h. Referenced by ast_cdr_init(), ast_cdr_setcid(), ast_cdr_update(), ast_channel_free(), and ast_set_callerid().

void* app[AST_CHANNEL_MAX_STACK]

Application information -- see assigned numbers Definition at line 176 of file channel.h. Referenced by pbx_exec().

char* appl

Current application Definition at line 107 of file channel.h. Referenced by pbx_exec().

pthread_t blocker

If anyone is blocking, this is them Definition at line 100 of file channel.h. Referenced by ast_do_masquerade(), ast_hangup(), ast_queue_frame(), ast_read(), and ast_softhangup_nolock().

int blocking

Whether or not we're blocking Definition at line 91 of file channel.h. Referenced by ast_autoservice_stop(), ast_do_masquerade(), ast_hangup(), ast_queue_frame(), ast_sendtext(), ast_softhangup_nolock(), ast_waitfor_nandfds(), and ast_write().

char* blockproc

Procedure causing blocking Definition at line 104 of file channel.h. Referenced by ast_hangup().

struct ast_channel* bridge

Who are we bridged to, if we're bridged Definition at line 77 of file channel.h. Referenced by ast_channel_bridge().

char call_forward[AST_MAX_EXTENSION]

Where to forward to if asked to dial on this interface Definition at line 200 of file channel.h.

char* callerid

Malloc'd Caller ID Definition at line 152 of file channel.h. Referenced by ast_cdr_init(), ast_cdr_setcid(), ast_cdr_update(), ast_channel_free(), ast_do_masquerade(), ast_pbx_run(), ast_request(), ast_set_callerid(), and ast_setstate().

unsigned int callgroup

Definition at line 226 of file channel.h.

int callingpres

Callerid presentation/screening Definition at line 160 of file channel.h.

struct ast_cdr* cdr

Call Detail Record Definition at line 196 of file channel.h. Referenced by __ast_request_and_dial(), ast_answer(), ast_cdr_appenduserfield(), ast_cdr_setaccount(), ast_cdr_setuserfield(), ast_cdr_update(), ast_hangup(), ast_pbx_run(), ast_read(), ast_set_callerid(), and pbx_exec().

int cdrflags

Call Detail Record Flags Definition at line 89 of file channel.h.

char context[AST_MAX_EXTENSION]

Current extension context Definition at line 164 of file channel.h. Referenced by __ast_request_and_dial(), ast_async_goto(), ast_cdr_init(), ast_cdr_update(), ast_pbx_outgoing_exten(), and ast_pbx_run().

char* data

Data passed to current application Definition at line 109 of file channel.h. Referenced by ast_indicate(), and pbx_exec().

int deferdtmf

Are DTMF digits being deferred Definition at line 180 of file channel.h. Referenced by ast_channel_defer_dtmf(), ast_channel_undefer_dtmf(), and ast_read().

struct ast_channel* dialed

Who did we call? Definition at line 79 of file channel.h.

struct ast_channel* dialing

Who called us? Definition at line 81 of file channel.h.

char* dnid

Malloc'd Dialed Number Identifier Definition at line 150 of file channel.h. Referenced by ast_channel_free(), and ast_do_masquerade().

struct ast_frame dtmff

DTMF frame Definition at line 182 of file channel.h. Referenced by ast_read().

char dtmfq[AST_MAX_EXTENSION]

Any/all queued DTMF characters Definition at line 178 of file channel.h. Referenced by ast_read().

int exception

Has an exception been detected Definition at line 112 of file channel.h. Referenced by ast_do_masquerade(), and ast_read().

char exten[AST_MAX_EXTENSION]

Current extension number Definition at line 172 of file channel.h. Referenced by __ast_request_and_dial(), ast_async_goto(), ast_cdr_init(), ast_cdr_update(), ast_pbx_outgoing_exten(), and ast_pbx_run().

int fdno

Which fd had an event detected on Definition at line 114 of file channel.h. Referenced by ast_do_masquerade(), and ast_read().

int fds[AST_MAX_FDS]

File descriptor for channel -- Drivers will poll on these file descriptors, so at least one must be non -1. Definition at line 64 of file channel.h. Referenced by ast_do_masquerade(), and ast_waitfor_nandfds().

unsigned int fin

Definition at line 213 of file channel.h. Referenced by ast_read().

int flag

channel flags of AST_FLAG_ type Definition at line 230 of file channel.h.

unsigned int fout

Definition at line 214 of file channel.h. Referenced by ast_write().

struct ast_generator* generator

Current active data generator Definition at line 72 of file channel.h. Referenced by ast_activate_generator(), ast_deactivate_generator(), ast_hangup(), ast_openstream(), and ast_read().

void* generatordata

Current generator data if there is any Definition at line 70 of file channel.h. Referenced by ast_activate_generator(), ast_deactivate_generator(), ast_hangup(), ast_read(), ast_tonepair(), and ast_write().

int hangupcause

Definition at line 220 of file channel.h. Referenced by __ast_request_and_dial(), and ast_hangup().

unsigned long insmpl

Track the read/written samples for monitor use Definition at line 209 of file channel.h. Referenced by ast_read(), and ast_write().

jmp_buf jmp[AST_CHANNEL_MAX_STACK]

Jump buffer used for returning from applications Definition at line 188 of file channel.h. Referenced by pbx_exec().

char language[MAX_LANGUAGE]

Language requested Definition at line 60 of file channel.h. Referenced by ast_app_getdata(), ast_app_getdata_full(), ast_app_getvoice(), ast_control_streamfile(), and ast_send_image().

ast_mutex_t lock

Lock, can be used to lock a channel for some operations Definition at line 102 of file channel.h. Referenced by ast_activate_generator(), ast_answer(), ast_async_goto(), ast_async_goto_by_name(), ast_call(), ast_channel_free(), ast_channel_make_compatible(), ast_channel_masquerade(), ast_deactivate_generator(), ast_hangup(), ast_indicate(), ast_parse_device_state(), ast_queue_frame(), ast_read(), ast_rtp_bridge(), ast_set_read_format(), ast_set_write_format(), ast_softhangup(), ast_transfer(), and ast_write().

char macrocontext[AST_MAX_EXTENSION]

Current non-macro context Definition at line 166 of file channel.h.

char macroexten[AST_MAX_EXTENSION]

Current non-macro extension Definition at line 168 of file channel.h.

int macropriority

Current non-macro priority Definition at line 170 of file channel.h.

struct ast_channel* masq

Channel that will masquerade as us Definition at line 85 of file channel.h. Referenced by ast_channel_masquerade(), ast_do_masquerade(), ast_hangup(), ast_read(), ast_waitfor_nandfds(), and ast_write().

struct ast_channel* masqr

Who we are masquerading as Definition at line 87 of file channel.h. Referenced by ast_channel_masquerade(), ast_do_masquerade(), ast_hangup(), and ast_write().

struct ast_channel_monitor* monitor

Definition at line 206 of file channel.h. Referenced by ast_channel_free(), ast_read(), and ast_write().

char musicclass[MAX_LANGUAGE]

Default music class Definition at line 67 of file channel.h.

char name[AST_CHANNEL_NAME]

ASCII Description of channel name Definition at line 58 of file channel.h. Referenced by ast_app_getvoice(), ast_async_goto(), ast_async_goto_by_name(), ast_cdr_init(), ast_change_name(), ast_channel_bridge(), ast_channel_free(), ast_channel_make_compatible(), ast_channel_masquerade(), ast_do_masquerade(), ast_dsp_process(), ast_hangup(), ast_indicate(), ast_parse_device_state(), ast_pbx_outgoing_app(), ast_pbx_outgoing_exten(), ast_pbx_run(), ast_playtones_start(), ast_prod(), ast_queue_frame(), ast_read(), ast_request(), ast_rtp_bridge(), ast_set_callerid(), ast_set_read_format(), ast_set_write_format(), ast_setstate(), ast_softhangup_nolock(), and ast_write().

int nativeformats

Kinds of data this channel can natively handle Definition at line 142 of file channel.h. Referenced by ast_channel_make_compatible(), ast_do_masquerade(), ast_read(), ast_set_read_format(), ast_set_write_format(), and ast_streamfile().

struct ast_channel* next

For easy linking Definition at line 233 of file channel.h. Referenced by ast_active_channels(), ast_autoservice_start(), ast_channel_free(), ast_channel_register_ex(), ast_channel_unregister(), ast_do_masquerade(), and ast_request().

int oldwriteformat

Original writer format Definition at line 126 of file channel.h. Referenced by ast_openstream(), and ast_stopstream().

unsigned long outsmpl

Definition at line 210 of file channel.h. Referenced by ast_read(), and ast_write().

struct ast_pbx* pbx

Definition at line 190 of file channel.h. Referenced by ast_app_getdata(), ast_async_goto(), ast_channel_free(), and ast_pbx_run().

unsigned int pickupgroup

Definition at line 227 of file channel.h.

int priority

Definition at line 174 of file channel.h. Referenced by __ast_request_and_dial(), ast_async_goto(), ast_pbx_outgoing_exten(), and ast_pbx_run().

struct ast_channel_pvt* pvt

Private channel implementation details Definition at line 184 of file channel.h. Referenced by ast_answer(), ast_call(), ast_channel_free(), ast_channel_sendhtml(), ast_channel_sendurl(), ast_channel_setoption(), ast_channel_supports_html(), ast_check_hangup(), ast_do_masquerade(), ast_hangup(), ast_indicate(), ast_prod(), ast_queue_frame(), ast_read(), ast_rtp_bridge(), ast_send_image(), ast_sendtext(), ast_set_read_format(), ast_set_write_format(), ast_supports_images(), ast_transfer(), ast_write(), and ast_write_video().

char* rdnis

Malloc'd RDNIS Definition at line 156 of file channel.h. Referenced by ast_channel_free().

int readformat

Requested read format Definition at line 144 of file channel.h. Referenced by ast_app_getvoice(), ast_async_goto(), ast_do_masquerade(), and ast_set_read_format().

int restrictcid

Hide callerid from user Definition at line 158 of file channel.h.

int reversedialed

Reverse the dialed link (0 false, 1 true) Definition at line 83 of file channel.h.

int rings

Number of rings so far Definition at line 136 of file channel.h.

struct sched_context* sched

Schedule context Definition at line 116 of file channel.h. Referenced by ast_closestream(), ast_hangup(), ast_waitstream(), ast_waitstream_fr(), and ast_waitstream_full().

int stack

Current level of application Definition at line 138 of file channel.h. Referenced by pbx_exec().

struct ast_filestream* stream

Stream itself. Definition at line 120 of file channel.h. Referenced by ast_closestream(), ast_control_streamfile(), ast_hangup(), ast_readstring(), ast_readstring_full(), ast_stopstream(), ast_waitstream(), ast_waitstream_fr(), and ast_waitstream_full().

int streamid

For streaming playback, the schedule ID Definition at line 118 of file channel.h. Referenced by ast_closestream().

void* timingdata

Definition at line 131 of file channel.h. Referenced by ast_read(), and ast_settimeout().

int timingfd

Timing fd Definition at line 129 of file channel.h. Referenced by ast_channel_free(), ast_do_masquerade(), ast_queue_frame(), ast_read(), and ast_settimeout().

int(* timingfunc)(void *data)

Referenced by ast_read(), ast_settimeout(), ast_waitstream(), ast_waitstream_fr(), and ast_waitstream_full().

char* type

Type of channel Definition at line 62 of file channel.h. Referenced by ast_channel_unregister(), ast_do_masquerade(), and ast_request().

char uniqueid[32]

Definition at line 217 of file channel.h. Referenced by ast_cdr_init(), ast_change_name(), ast_hangup(), ast_pbx_run(), ast_request(), ast_set_callerid(), and ast_setstate().

struct ast_var_t* vars

Definition at line 223 of file channel.h.

struct ast_filestream* vstream

Stream itself. Definition at line 124 of file channel.h. Referenced by ast_closestream(), ast_hangup(), and ast_stopstream().

int vstreamid

For streaming playback, the schedule ID Definition at line 122 of file channel.h. Referenced by ast_closestream().

time_t whentohangup

Non-zero, set to actual time when channel is to be hung up Definition at line 98 of file channel.h. Referenced by ast_channel_setwhentohangup(), ast_check_hangup(), ast_pbx_run(), and ast_waitfor_nandfds().

int writeformat

Requested write format Definition at line 146 of file channel.h. Referenced by ast_async_goto(), ast_do_masquerade(), ast_openstream(), and ast_set_write_format().

int writeinterrupt

Whether or not the generator should be interrupted by write Definition at line 74 of file channel.h. Referenced by ast_deactivate_generator(), and ast_write().

int zombie

Non-zero if this is a zombie channel Definition at line 96 of file channel.h. Referenced by ast_answer(), ast_call(), ast_channel_bridge(), ast_hangup(), ast_indicate(), ast_read(), ast_readstring(), ast_readstring_full(), ast_sendtext(), ast_transfer(), ast_waitfordigit(), ast_waitfordigit_full(), and ast_write().

struct tone_zone* zone

Tone zone Definition at line 203 of file channel.h. Referenced by ast_indicate().

---

The documentation for this struct was generated from the following file:

• channel.h

---
