translate.c File Reference

#include <asterisk/lock.h>
#include <asterisk/channel.h>
#include <asterisk/channel_pvt.h>
#include <asterisk/logger.h>
#include <asterisk/translate.h>
#include <asterisk/options.h>
#include <asterisk/frame.h>
#include <asterisk/sched.h>
#include <asterisk/cli.h>
#include <asterisk/term.h>
#include <sys/socket.h>
#include <sys/time.h>
#include <unistd.h>
#include <stdlib.h>
#include <pthread.h>
#include <string.h>
#include <stdio.h>

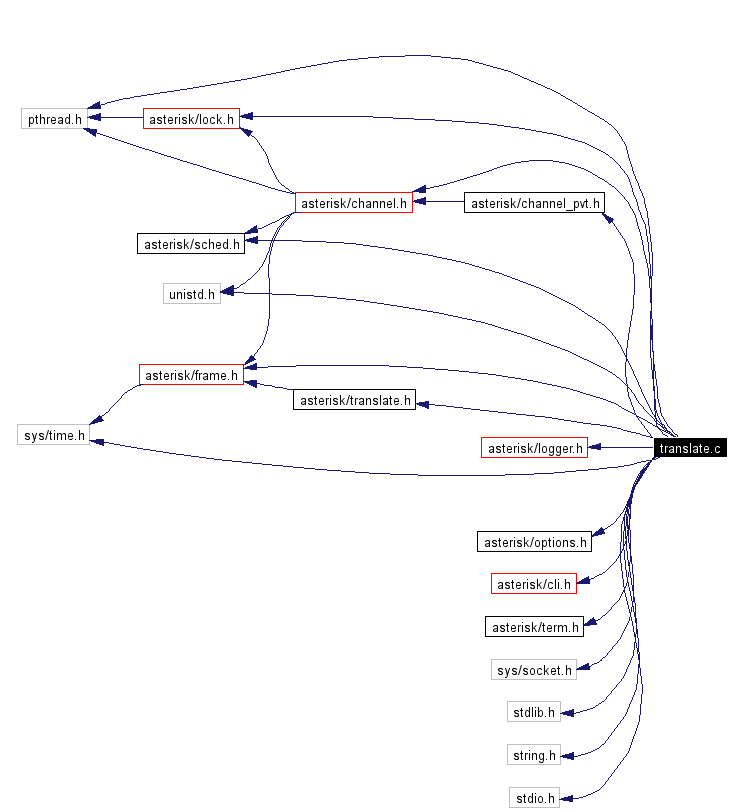

Include dependency graph for translate.c:

Include dependency graph

Go to the source code of this file.

Data Structures

struct  ast_translator_dir
struct  ast_frame_delivery
struct  ast_trans_pvt

Defines

#define MAX_RECALC   200 /* max sample recalc */
#define SHOW_TRANS   11

Functions

 AST_MUTEX_DEFINE_STATIC (list_lock)
void ast_translator_free_path (struct ast_trans_pvt *p)
 Frees a translator path.

ast_trans_pvt * ast_translator_build_path (int dest, int source)
 Builds a translator path.

ast_frame * ast_translate (struct ast_trans_pvt *path, struct ast_frame *f, int consume)
 translates one or more frames

int ast_register_translator (struct ast_translator *t)
 Register a translator.

int ast_unregister_translator (struct ast_translator *t)
 Unregister a translator.

int ast_translator_best_choice (int *dst, int *srcs)
 Chooses the best translation path.

Define Documentation

#define MAX_RECALC   200 /* max sample recalc */


Definition at line 32 of file translate.c.

#define SHOW_TRANS   11


Function Documentation

AST_MUTEX_DEFINE_STATIC (  list_lock   )


int ast_register_translator (  struct ast_translator *  t  )


Register a translator.

Parameters:
t populated ast_translator structure This registers a codec translator with asterisk Returns 0 on success, -1 on failure

Definition at line 389 of file translate.c.

References ast_cli_register(), ast_getformatname(), ast_log(), ast_mutex_lock, ast_mutex_unlock, ast_verbose(), COLOR_BLACK, COLOR_MAGENTA, ast_translator::cost, ast_translator::dstfmt, LOG_WARNING, MAX_FORMAT, ast_translator::name, ast_translator::next, option_verbose, ast_translator::srcfmt, term_color(), and VERBOSE_PREFIX_2.

00390 {
00391    char tmp[80];
00392    t->srcfmt = powerof(t->srcfmt);
00393    t->dstfmt = powerof(t->dstfmt);
00394    if ((t->srcfmt >= MAX_FORMAT) || (t->dstfmt >= MAX_FORMAT)) {
00395       ast_log(LOG_WARNING, "Format %s is larger than MAX_FORMAT\n", ast_getformatname(t->srcfmt));
00396       return -1;
00397    }
00398    calc_cost(t,1);
00399    if (option_verbose > 1)
00400       ast_verbose(VERBOSE_PREFIX_2 "Registered translator '%s' from format %s to %s, cost %d\n", term_color(tmp, t->name, COLOR_MAGENTA, COLOR_BLACK, sizeof(tmp)), ast_getformatname(1 << t->srcfmt), ast_getformatname(1 << t->dstfmt), t->cost);
00401    ast_mutex_lock(&list_lock);
00402    if (!added_cli) {
00403       ast_cli_register(&show_trans);
00404       added_cli++;
00405    }
00406    t->next = list;
00407    list = t;
00408    rebuild_matrix(0);
00409    ast_mutex_unlock(&list_lock);
00410    return 0;
00411 }

struct ast_frame* ast_translate (  struct ast_trans_pvt *  tr,
struct ast_frame *  f,
int  consume
)


translates one or more frames

Parameters:
tr translator structure to use for translation
f frame to translate
consume Whether or not to free the original frame Apply an input frame into the translator and receive zero or one output frames. Consume determines whether the original frame should be freed Returns an ast_frame of the new translation format on success, NULL on failure

Definition at line 138 of file translate.c.

References ast_frfree(), ast_log(), ast_frame::delivery, ast_translator::framein, LOG_WARNING, ast_frame::samples, and ast_trans_pvt::step.

Referenced by ast_read(), ast_write(), and ast_writestream().

00139 {
00140    struct ast_trans_pvt *p;
00141    struct ast_frame *out;
00142    struct timeval delivery;
00143    p = path;
00144    /* Feed the first frame into the first translator */
00145    p->step->framein(p->state, f);
00146    if (f->delivery.tv_sec || f->delivery.tv_usec) {
00147       if (path->nextin.tv_sec || path->nextin.tv_usec) {
00148          /* Make sure this is in line with what we were expecting */
00149          if ((path->nextin.tv_sec != f->delivery.tv_sec) ||
00150              (path->nextin.tv_usec != f->delivery.tv_usec)) {
00151             /* The time has changed between what we expected and this
00152                most recent time on the new packet.  Adjust our output
00153                time appropriately */
00154             long sdiff;
00155             long udiff;
00156             sdiff = f->delivery.tv_sec - path->nextin.tv_sec;
00157             udiff = f->delivery.tv_usec - path->nextin.tv_usec;
00158             path->nextin.tv_sec = f->delivery.tv_sec;
00159             path->nextin.tv_usec = f->delivery.tv_usec;
00160             path->nextout.tv_sec += sdiff;
00161             path->nextout.tv_usec += udiff;
00162             if (path->nextout.tv_usec < 0) {
00163                path->nextout.tv_usec += 1000000;
00164                path->nextout.tv_sec--;
00165             } else if (path->nextout.tv_usec >= 1000000) {
00166                path->nextout.tv_usec -= 1000000;
00167                path->nextout.tv_sec++;
00168             }
00169          }
00170       } else {
00171          /* This is our first pass.  Make sure the timing looks good */
00172          path->nextin.tv_sec = f->delivery.tv_sec;
00173          path->nextin.tv_usec = f->delivery.tv_usec;
00174          path->nextout.tv_sec = f->delivery.tv_sec;
00175          path->nextout.tv_usec = f->delivery.tv_usec;
00176       }
00177       /* Predict next incoming sample */
00178       path->nextin.tv_sec += (f->samples / 8000);
00179       path->nextin.tv_usec += ((f->samples % 8000) * 125);
00180       if (path->nextin.tv_usec >= 1000000) {
00181          path->nextin.tv_usec -= 1000000;
00182          path->nextin.tv_sec++;
00183       }
00184    }
00185    delivery.tv_sec = f->delivery.tv_sec;
00186    delivery.tv_usec = f->delivery.tv_usec;
00187    if (consume)
00188       ast_frfree(f);
00189    while(p) {
00190       out = p->step->frameout(p->state);
00191       /* If we get nothing out, return NULL */
00192       if (!out)
00193          return NULL;
00194       /* If there is a next state, feed it in there.  If not,
00195          return this frame  */
00196       if (p->next)
00197          p->next->step->framein(p->next->state, out);
00198       else {
00199          if (delivery.tv_sec || delivery.tv_usec) {
00200             /* Use next predicted outgoing timestamp */
00201             out->delivery.tv_sec = path->nextout.tv_sec;
00202             out->delivery.tv_usec = path->nextout.tv_usec;
00203
00204             /* Predict next outgoing timestamp from samples in this
00205                frame. */
00206             path->nextout.tv_sec += (out->samples / 8000);
00207             path->nextout.tv_usec += ((out->samples % 8000) * 125);
00208             if (path->nextout.tv_usec >= 1000000) {
00209                path->nextout.tv_sec++;
00210                path->nextout.tv_usec -= 1000000;
00211             }
00212          } else {
00213             out->delivery.tv_sec = 0;
00214             out->delivery.tv_usec = 0;
00215          }
00216          return out;
00217       }
00218       p = p->next;
00219    }
00220    ast_log(LOG_WARNING, "I should never get here...\n");
00221    return NULL;
00222 }

int ast_translator_best_choice (  int *  dsts,
int *  srcs
)


Chooses the best translation path.

Given a list of sources, and a designed destination format, which should I choose? Returns 0 on success, -1 if no path could be found. Modifies dests and srcs in place

Definition at line 437 of file translate.c.

References ast_mutex_lock, ast_mutex_unlock, ast_translator_dir::cost, MAX_FORMAT, and ast_translator_dir::step.

Referenced by ast_channel_make_compatible(), ast_request(), ast_set_read_format(), and ast_set_write_format().

00438 {
00439    /* Calculate our best source format, given costs, and a desired destination */
00440    int x,y;
00441    int best=-1;
00442    int bestdst=0;
00443    int cur = 1;
00444    int besttime=999999999;
00445    ast_mutex_lock(&list_lock);
00446    for (y=0;y<MAX_FORMAT;y++) {
00447       if ((cur & *dst) && (cur & *srcs)) {
00448          /* This is a common format to both.  Pick it if we don't have one already */
00449          besttime=0;
00450          bestdst = cur;
00451          best = cur;
00452          break;
00453       }
00454       if (cur & *dst)
00455          for (x=0;x<MAX_FORMAT;x++) {
00456             if (tr_matrix[x][y].step &&   /* There's a step */
00457                 (tr_matrix[x][y].cost < besttime) && /* We're better than what exists now */
00458                (*srcs & (1 << x)))        /* x is a valid source format */
00459                {
00460                   best = 1 << x;
00461                   bestdst = cur;
00462                   besttime = tr_matrix[x][y].cost;
00463                }
00464          }
00465       cur = cur << 1;
00466    }
00467    if (best > -1) {
00468       *srcs = best;
00469       *dst = bestdst;
00470       best = 0;
00471    }
00472    ast_mutex_unlock(&list_lock);
00473    return best;
00474 }

struct ast_trans_pvt* ast_translator_build_path (  int  dest,
int  source
)


Builds a translator path.

Parameters:
dest destination format
source source format Build a path (possibly NULL) from source to dest Returns ast_trans_pvt on success, NULL on failure

Definition at line 88 of file translate.c.

References ast_getformatname(), ast_log(), free, LOG_WARNING, malloc, ast_translator::new, and ast_translator_dir::step.

Referenced by ast_set_read_format(), ast_set_write_format(), and ast_writestream().

00089 {
00090    struct ast_trans_pvt *tmpr = NULL, *tmp = NULL;
00091    /* One of the hardest parts:  Build a set of translators based upon
00092       the given source and destination formats */
00093    source = powerof(source);
00094    dest = powerof(dest);
00095    while(source != dest) {
00096       if (tr_matrix[source][dest].step) {
00097          if (tmp) {
00098             tmp->next = malloc(sizeof(struct ast_trans_pvt));
00099             tmp = tmp->next;
00100          } else
00101             tmp = malloc(sizeof(struct ast_trans_pvt));
00102
00103
00104          if (tmp) {
00105             tmp->next = NULL;
00106             tmp->nextin.tv_sec = 0;
00107             tmp->nextin.tv_usec = 0;
00108             tmp->nextout.tv_sec = 0;
00109             tmp->nextout.tv_usec = 0;
00110             tmp->step = tr_matrix[source][dest].step;
00111             tmp->state = tmp->step->new();
00112             if (!tmp->state) {
00113                ast_log(LOG_WARNING, "Failed to build translator step from %d to %d\n", source, dest);
00114                free(tmp);
00115                tmp = NULL;
00116                return NULL;
00117             }
00118             /* Set the root, if it doesn't exist yet... */
00119             if (!tmpr)
00120                tmpr = tmp;
00121             /* Keep going if this isn't the final destination */
00122             source = tmp->step->dstfmt;
00123          } else {
00124             /* XXX This could leak XXX */
00125             ast_log(LOG_WARNING, "Out of memory\n");
00126             return NULL;
00127          }
00128       } else {
00129          /* We shouldn't have allocated any memory */
00130          ast_log(LOG_WARNING, "No translator path from %s to %s\n",
00131             ast_getformatname(source), ast_getformatname(dest));
00132          return NULL;
00133       }
00134    }
00135    return tmpr;
00136 }

void ast_translator_free_path (  struct ast_trans_pvt *  tr  )


Frees a translator path.

Parameters:
tr translator path to get rid of Frees the given translator path structure

Definition at line 75 of file translate.c.

References ast_translator::destroy, free, ast_trans_pvt::next, and ast_trans_pvt::step.

Referenced by ast_channel_free(), ast_closestream(), ast_set_read_format(), ast_set_write_format(), and ast_writestream().

00076 {
00077    struct ast_trans_pvt *pl, *pn;
00078    pn = p;
00079    while(pn) {
00080       pl = pn;
00081       pn = pn->next;
00082       if (pl->state && pl->step->destroy)
00083          pl->step->destroy(pl->state);
00084       free(pl);
00085    }
00086 }

int ast_unregister_translator (  struct ast_translator *  t  )


Unregister a translator.

Parameters:
t translator to unregister Unregisters the given tranlator Returns 0 on success, -1 on failure

Definition at line 413 of file translate.c.

References ast_getformatname(), ast_mutex_lock, ast_mutex_unlock, ast_verbose(), COLOR_BLACK, COLOR_MAGENTA, ast_translator::dstfmt, ast_translator::name, ast_translator::next, option_verbose, ast_translator::srcfmt, term_color(), and VERBOSE_PREFIX_2.

00414 {
00415    char tmp[80];
00416    struct ast_translator *u, *ul = NULL;
00417    ast_mutex_lock(&list_lock);
00418    u = list;
00419    while(u) {
00420       if (u == t) {
00421          if (ul)
00422             ul->next = u->next;
00423          else
00424             list = u->next;
00425          if (option_verbose > 1)
00426             ast_verbose(VERBOSE_PREFIX_2 "Unregistered translator '%s' from format %s to %s\n", term_color(tmp, t->name, COLOR_MAGENTA, COLOR_BLACK, sizeof(tmp)), ast_getformatname(1 << t->srcfmt), ast_getformatname(1 << t->dstfmt));
00427          break;
00428       }
00429       ul = u;
00430       u = u->next;
00431    }
00432    rebuild_matrix(0);
00433    ast_mutex_unlock(&list_lock);
00434    return (u ? 0 : -1);
00435 }

Generated on Sat Jun 12 16:41:49 2004 for Asterisk by doxygen 1.3.7
