channel_pvt.h File Reference

#include <asterisk/channel.h>

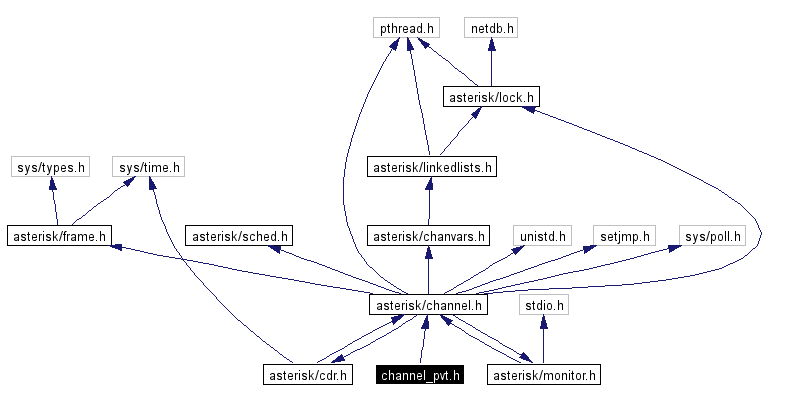

Include dependency graph for channel_pvt.h:

Include dependency graph

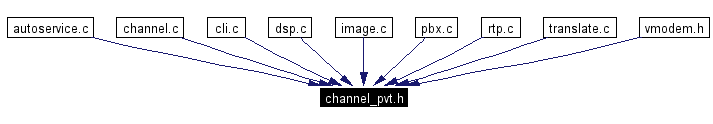

This graph shows which files directly or indirectly include this file:

Included by dependency graph

Go to the source code of this file.

Data Structures

struct  ast_channel_pvt

Functions

ast_channel * ast_channel_alloc (int needalertpipe)
 Create a channel structure.

int ast_queue_frame (struct ast_channel *chan, struct ast_frame *f)
int ast_queue_hangup (struct ast_channel *chan)
int ast_queue_control (struct ast_channel *chan, int control)
int ast_setstate (struct ast_channel *chan, int state)
void ast_change_name (struct ast_channel *chan, char *newname)
void ast_channel_free (struct ast_channel *)
 Free a channel structure.

Function Documentation

void ast_change_name (  struct ast_channel *  chan,
char *  newname
)


Definition at line 2109 of file channel.c.

References EVENT_FLAG_CALL, manager_event(), ast_channel::name, and ast_channel::uniqueid.

02110 {
02111    char tmp[256];
02112    strncpy(tmp, chan->name, 256);
02113    strncpy(chan->name, newname, sizeof(chan->name) - 1);
02114    manager_event(EVENT_FLAG_CALL, "Rename", "Oldname: %s\r\nNewname: %s\r\nUniqueid: %s\r\n", tmp, chan->name, chan->uniqueid);
02115 }

struct ast_channel* ast_channel_alloc (  int  needalertpipe  )


Create a channel structure.

Returns NULL on failure to allocate

Definition at line 274 of file channel.c.

References ast_default_accountcode, ast_default_amaflags, AST_LIST_HEAD_INIT, AST_LIST_INSERT_HEAD, ast_log(), AST_MAX_FDS, ast_mutex_lock, ast_mutex_unlock, AST_STATE_DOWN, ast_var_assign(), channels, defaultlanguage, free, LOG_WARNING, malloc, and sched_context_create().

Referenced by ast_async_goto(), and ast_pbx_outgoing_exten().

00275 {
00276    struct ast_channel *tmp;
00277    struct ast_channel_pvt *pvt;
00278    int x;
00279    int flags;
00280    struct varshead *headp;
00281
00282
00283    /* If shutting down, don't allocate any new channels */
00284    if (shutting_down)
00285       return NULL;
00286    ast_mutex_lock(&chlock);
00287    tmp = malloc(sizeof(struct ast_channel));
00288    if (tmp) {
00289       memset(tmp, 0, sizeof(struct ast_channel));
00290       pvt = malloc(sizeof(struct ast_channel_pvt));
00291       if (pvt) {
00292          memset(pvt, 0, sizeof(struct ast_channel_pvt));
00293          tmp->sched = sched_context_create();
00294          if (tmp->sched) {
00295             for (x=0;x<AST_MAX_FDS - 1;x++)
00296                tmp->fds[x] = -1;
00297 #ifdef ZAPTEL_OPTIMIZATIONS
00298             tmp->timingfd = open("/dev/zap/timer", O_RDWR);
00299             if (tmp->timingfd > -1) {
00300                /* Check if timing interface supports new
00301                   ping/pong scheme */
00302                flags = 1;
00303                if (!ioctl(tmp->timingfd, ZT_TIMERPONG, &flags))
00304                   needqueue = 0;
00305             }
00306 #else
00307             tmp->timingfd = -1;
00308 #endif
00309             if (needqueue &&
00310                pipe(pvt->alertpipe)) {
00311                ast_log(LOG_WARNING, "Alert pipe creation failed!\n");
00312                free(pvt);
00313                free(tmp);
00314                tmp = NULL;
00315                pvt = NULL;
00316             } else {
00317                if (needqueue) {
00318                   flags = fcntl(pvt->alertpipe[0], F_GETFL);
00319                   fcntl(pvt->alertpipe[0], F_SETFL, flags | O_NONBLOCK);
00320                   flags = fcntl(pvt->alertpipe[1], F_GETFL);
00321                   fcntl(pvt->alertpipe[1], F_SETFL, flags | O_NONBLOCK);
00322                } else
00323                /* Make sure we've got it done right if they don't */
00324                   pvt->alertpipe[0] = pvt->alertpipe[1] = -1;
00325                /* Always watch the alertpipe */
00326                tmp->fds[AST_MAX_FDS-1] = pvt->alertpipe[0];
00327                /* And timing pipe */
00328                tmp->fds[AST_MAX_FDS-2] = tmp->timingfd;
00329                strncpy(tmp->name, "**Unknown**", sizeof(tmp->name)-1);
00330                tmp->pvt = pvt;
00331                /* Initial state */
00332                tmp->_state = AST_STATE_DOWN;
00333                tmp->stack = -1;
00334                tmp->streamid = -1;
00335                tmp->appl = NULL;
00336                tmp->data = NULL;
00337                tmp->fin = 0;
00338                tmp->fout = 0;
00339                snprintf(tmp->uniqueid, sizeof(tmp->uniqueid), "%li.%d", (long)time(NULL), uniqueint++);
00340                headp=&tmp->varshead;
00341                ast_mutex_init(&tmp->lock);
00342                     AST_LIST_HEAD_INIT(headp);
00343                tmp->vars=ast_var_assign("tempvar","tempval");
00344                AST_LIST_INSERT_HEAD(headp,tmp->vars,entries);
00345                strncpy(tmp->context, "default", sizeof(tmp->context)-1);
00346                strncpy(tmp->language, defaultlanguage, sizeof(tmp->language)-1);
00347                strncpy(tmp->exten, "s", sizeof(tmp->exten)-1);
00348                tmp->priority=1;
00349                tmp->amaflags = ast_default_amaflags;
00350                strncpy(tmp->accountcode, ast_default_accountcode, sizeof(tmp->accountcode)-1);
00351                tmp->next = channels;
00352                channels= tmp;
00353             }
00354          } else {
00355             ast_log(LOG_WARNING, "Unable to create schedule context\n");
00356             free(tmp);
00357             tmp = NULL;
00358          }
00359       } else {
00360          ast_log(LOG_WARNING, "Out of memory\n");
00361          free(tmp);
00362          tmp = NULL;
00363       }
00364    } else
00365       ast_log(LOG_WARNING, "Out of memory\n");
00366    ast_mutex_unlock(&chlock);
00367    return tmp;
00368 }

void ast_channel_free (  struct ast_channel *   )


Free a channel structure.

Definition at line 526 of file channel.c.

References ast_channel_pvt::alertpipe, ast_channel::ani, AST_CHANNEL_NAME, ast_device_state_changed(), ast_frfree(), AST_LIST_EMPTY, AST_LIST_FIRST, AST_LIST_REMOVE_HEAD, ast_log(), ast_mutex_destroy, ast_mutex_lock, ast_mutex_unlock, ast_translator_free_path(), ast_var_delete(), ast_channel::callerid, channels, ast_channel::dnid, free, ast_channel::lock, LOG_WARNING, ast_channel::monitor, ast_channel::name, ast_frame::next, ast_channel::next, ast_channel::pbx, ast_channel_pvt::pvt, ast_channel::pvt, ast_channel::rdnis, ast_channel_pvt::readq, ast_channel_pvt::readtrans, ast_channel_monitor::stop, ast_channel::timingfd, and ast_channel_pvt::writetrans.

Referenced by ast_do_masquerade(), and ast_hangup().

00527 {
00528    struct ast_channel *last=NULL, *cur;
00529    int fd;
00530    struct ast_var_t *vardata;
00531    struct ast_frame *f, *fp;
00532    struct varshead *headp;
00533    char name[AST_CHANNEL_NAME];
00534
00535    headp=&chan->varshead;
00536
00537    ast_mutex_lock(&chlock);
00538    cur = channels;
00539    while(cur) {
00540       if (cur == chan) {
00541          if (last)
00542             last->next = cur->next;
00543          else
00544             channels = cur->next;
00545          break;
00546       }
00547       last = cur;
00548       cur = cur->next;
00549    }
00550    if (!cur)
00551       ast_log(LOG_WARNING, "Unable to find channel in list\n");
00552    else {
00553       /* Lock and unlock the channel just to be sure nobody
00554          has it locked still */
00555       ast_mutex_lock(&cur->lock);
00556       ast_mutex_unlock(&cur->lock);
00557    }
00558    if (chan->pvt->pvt)
00559       ast_log(LOG_WARNING, "Channel '%s' may not have been hung up properly\n", chan->name);
00560
00561    strncpy(name, chan->name, sizeof(name)-1);
00562
00563    /* Stop monitoring */
00564    if (chan->monitor) {
00565       chan->monitor->stop( chan, 0 );
00566    }
00567
00568    /* Free translatosr */
00569    if (chan->pvt->readtrans)
00570       ast_translator_free_path(chan->pvt->readtrans);
00571    if (chan->pvt->writetrans)
00572       ast_translator_free_path(chan->pvt->writetrans);
00573    if (chan->pbx)
00574       ast_log(LOG_WARNING, "PBX may not have been terminated properly on '%s'\n", chan->name);
00575    if (chan->dnid)
00576       free(chan->dnid);
00577    if (chan->callerid)
00578       free(chan->callerid);
00579    if (chan->ani)
00580       free(chan->ani);
00581    if (chan->rdnis)
00582       free(chan->rdnis);
00583    ast_mutex_destroy(&chan->lock);
00584    /* Close pipes if appropriate */
00585    if ((fd = chan->pvt->alertpipe[0]) > -1)
00586       close(fd);
00587    if ((fd = chan->pvt->alertpipe[1]) > -1)
00588       close(fd);
00589    if ((fd = chan->timingfd) > -1)
00590       close(fd);
00591    f = chan->pvt->readq;
00592    chan->pvt->readq = NULL;
00593    while(f) {
00594       fp = f;
00595       f = f->next;
00596       ast_frfree(fp);
00597    }
00598
00599    /* loop over the variables list, freeing all data and deleting list items */
00600    /* no need to lock the list, as the channel is already locked */
00601
00602    while (!AST_LIST_EMPTY(headp)) {           /* List Deletion. */
00603                vardata = AST_LIST_FIRST(headp);
00604                AST_LIST_REMOVE_HEAD(headp, entries);
00605 //             printf("deleting var %s=%s\n",ast_var_name(vardata),ast_var_value(vardata));
00606                ast_var_delete(vardata);
00607    }
00608
00609
00610    free(chan->pvt);
00611    chan->pvt = NULL;
00612    free(chan);
00613    ast_mutex_unlock(&chlock);
00614
00615    ast_device_state_changed(name);
00616 }

int ast_queue_control (  struct ast_channel *  chan,
int  control
)


Definition at line 428 of file channel.c.

References AST_FRAME_CONTROL, ast_queue_frame(), and ast_frame::subclass.

00429 {
00430    struct ast_frame f = { AST_FRAME_CONTROL, };
00431    f.subclass = control;
00432    return ast_queue_frame(chan, &f);
00433 }

int ast_queue_frame (  struct ast_channel *  chan,
struct ast_frame *  f
)


Queue an outgoing frame

Definition at line 370 of file channel.c.

References ast_channel_pvt::alertpipe, AST_FRAME_VOICE, ast_frdup(), ast_frfree(), ast_log(), ast_mutex_lock, ast_mutex_unlock, ast_channel::blocker, ast_channel::blocking, CRASH, ast_frame::frametype, ast_channel::lock, LOG_DEBUG, LOG_WARNING, ast_channel::name, ast_frame::next, ast_channel::pvt, ast_channel_pvt::readq, and ast_channel::timingfd.

Referenced by ast_channel_masquerade(), ast_dsp_process(), ast_queue_control(), ast_queue_hangup(), and ast_softhangup_nolock().

00371 {
00372    struct ast_frame *f;
00373    struct ast_frame *prev, *cur;
00374    int blah = 1;
00375    int qlen = 0;
00376    /* Build us a copy and free the original one */
00377    f = ast_frdup(fin);
00378    if (!f) {
00379       ast_log(LOG_WARNING, "Unable to duplicate frame\n");
00380       return -1;
00381    }
00382    ast_mutex_lock(&chan->lock);
00383    prev = NULL;
00384    cur = chan->pvt->readq;
00385    while(cur) {
00386       prev = cur;
00387       cur = cur->next;
00388       qlen++;
00389    }
00390    /* Allow up to 96 voice frames outstanding, and up to 128 total frames */
00391    if (((fin->frametype == AST_FRAME_VOICE) && (qlen > 96)) || (qlen  > 128)) {
00392       if (fin->frametype != AST_FRAME_VOICE) {
00393          ast_log(LOG_WARNING, "Exceptionally long queue length queuing to %s\n", chan->name);
00394          CRASH;
00395       } else {
00396          ast_log(LOG_DEBUG, "Dropping voice to exceptionally long queue on %s\n", chan->name);
00397          ast_frfree(f);
00398          ast_mutex_unlock(&chan->lock);
00399          return 0;
00400       }
00401    }
00402    if (prev)
00403       prev->next = f;
00404    else
00405       chan->pvt->readq = f;
00406    if (chan->pvt->alertpipe[1] > -1) {
00407       if (write(chan->pvt->alertpipe[1], &blah, sizeof(blah)) != sizeof(blah))
00408          ast_log(LOG_WARNING, "Unable to write to alert pipe on %s, frametype/subclass %d/%d (qlen = %d): %s!\n",
00409             chan->name, f->frametype, f->subclass, qlen, strerror(errno));
00410 #ifdef ZAPTEL_OPTIMIZATIONS
00411    } else if (chan->timingfd > -1) {
00412       ioctl(chan->timingfd, ZT_TIMERPING, &blah);
00413 #endif
00414    } else if (chan->blocking) {
00415       pthread_kill(chan->blocker, SIGURG);
00416    }
00417    ast_mutex_unlock(&chan->lock);
00418    return 0;
00419 }

int ast_queue_hangup (  struct ast_channel *  chan  )


Definition at line 421 of file channel.c.

References ast_channel::_softhangup, AST_CONTROL_HANGUP, AST_FRAME_CONTROL, ast_queue_frame(), and AST_SOFTHANGUP_DEV.

00422 {
00423    struct ast_frame f = { AST_FRAME_CONTROL, AST_CONTROL_HANGUP };
00424    chan->_softhangup |= AST_SOFTHANGUP_DEV;
00425    return ast_queue_frame(chan, &f);
00426 }

int ast_setstate (  struct ast_channel *  chan,
int  state
)


Change the state of a channel

Definition at line 2350 of file channel.c.

References ast_channel::_state, ast_device_state_changed(), ast_state2str(), AST_STATE_DOWN, ast_channel::callerid, EVENT_FLAG_CALL, manager_event(), ast_channel::name, and ast_channel::uniqueid.

Referenced by ast_answer(), ast_async_goto(), and ast_read().

02351 {
02352    if (chan->_state != state) {
02353       int oldstate = chan->_state;
02354       chan->_state = state;
02355       if (oldstate == AST_STATE_DOWN) {
02356          ast_device_state_changed(chan->name);
02357          manager_event(EVENT_FLAG_CALL, "Newchannel",
02358          "Channel: %s\r\n"
02359          "State: %s\r\n"
02360          "Callerid: %s\r\n"
02361          "Uniqueid: %s\r\n",
02362          chan->name, ast_state2str(chan->_state), chan->callerid ? chan->callerid : "<unknown>", chan->uniqueid);
02363       } else {
02364          manager_event(EVENT_FLAG_CALL, "Newstate",
02365             "Channel: %s\r\n"
02366             "State: %s\r\n"
02367             "Callerid: %s\r\n"
02368             "Uniqueid: %s\r\n",
02369             chan->name, ast_state2str(chan->_state), chan->callerid ? chan->callerid : "<unknown>", chan->uniqueid);
02370       }
02371    }
02372    return 0;
02373 }

Generated on Sat Jun 12 16:41:10 2004 for Asterisk by doxygen 1.3.7
