rtp.h File Reference

#include <asterisk/frame.h>
#include <asterisk/io.h>
#include <asterisk/sched.h>
#include <asterisk/channel.h>
#include <netinet/in.h>

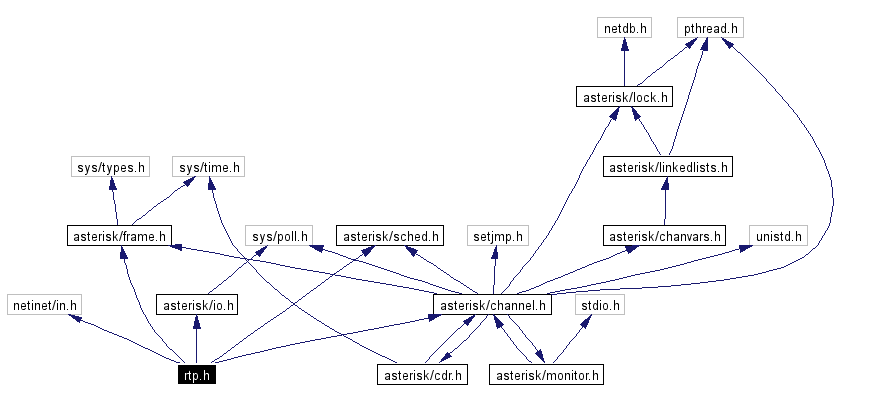

Include dependency graph for rtp.h:

Include dependency graph

This graph shows which files directly or indirectly include this file:

Included by dependency graph

Go to the source code of this file.

Data Structures

struct  ast_rtp_protocol

Defines

#define AST_RTP_DTMF   (1 << 0)
#define AST_RTP_CN   (1 << 1)
#define AST_RTP_CISCO_DTMF   (1 << 2)
#define AST_RTP_MAX   AST_RTP_CISCO_DTMF

Typedefs

typedef int(* ast_rtp_callback )(struct ast_rtp *rtp, struct ast_frame *f, void *data)

Functions

ast_rtp * ast_rtp_new (struct sched_context *sched, struct io_context *io, int rtcpenable, int callbackmode)
void ast_rtp_set_peer (struct ast_rtp *rtp, struct sockaddr_in *them)
void ast_rtp_get_peer (struct ast_rtp *rtp, struct sockaddr_in *them)
void ast_rtp_get_us (struct ast_rtp *rtp, struct sockaddr_in *us)
void ast_rtp_destroy (struct ast_rtp *rtp)
void ast_rtp_set_callback (struct ast_rtp *rtp, ast_rtp_callback callback)
void ast_rtp_set_data (struct ast_rtp *rtp, void *data)
int ast_rtp_write (struct ast_rtp *rtp, struct ast_frame *f)
ast_frame * ast_rtp_read (struct ast_rtp *rtp)
ast_frame * ast_rtcp_read (struct ast_rtp *rtp)
int ast_rtp_fd (struct ast_rtp *rtp)
int ast_rtcp_fd (struct ast_rtp *rtp)
int ast_rtp_senddigit (struct ast_rtp *rtp, char digit)
int ast_rtp_settos (struct ast_rtp *rtp, int tos)
void ast_rtp_pt_clear (struct ast_rtp *rtp)
void ast_rtp_pt_default (struct ast_rtp *rtp)
void ast_rtp_set_m_type (struct ast_rtp *rtp, int pt)
void ast_rtp_set_rtpmap_type (struct ast_rtp *rtp, int pt, char *mimeType, char *mimeSubtype)
rtpPayloadType ast_rtp_lookup_pt (struct ast_rtp *rtp, int pt)
int ast_rtp_lookup_code (struct ast_rtp *rtp, int isAstFormat, int code)
void ast_rtp_get_current_formats (struct ast_rtp *rtp, int *astFormats, int *nonAstFormats)
char * ast_rtp_lookup_mime_subtype (int isAstFormat, int code)
void ast_rtp_setnat (struct ast_rtp *rtp, int nat)
int ast_rtp_bridge (struct ast_channel *c0, struct ast_channel *c1, int flags, struct ast_frame **fo, struct ast_channel **rc)
int ast_rtp_proto_register (struct ast_rtp_protocol *proto)
void ast_rtp_proto_unregister (struct ast_rtp_protocol *proto)
void ast_rtp_stop (struct ast_rtp *rtp)
void ast_rtp_init (void)
void ast_rtp_reload (void)

Define Documentation

#define AST_RTP_CISCO_DTMF   (1 << 2)


DTMF (Cisco Proprietary)

Definition at line 34 of file rtp.h.

Referenced by ast_rtp_read().

#define AST_RTP_CN   (1 << 1)


'Comfort Noise' (RFC3389)

Definition at line 32 of file rtp.h.

Referenced by ast_rtp_read().

#define AST_RTP_DTMF   (1 << 0)


DTMF (RFC2833)

Definition at line 30 of file rtp.h.

Referenced by ast_rtp_read().

#define AST_RTP_MAX   AST_RTP_CISCO_DTMF


Maximum RTP-specific code

Definition at line 36 of file rtp.h.

Typedef Documentation

typedef int(* ast_rtp_callback)(struct ast_rtp *rtp, struct ast_frame *f, void *data)


Definition at line 49 of file rtp.h.

Referenced by ast_rtp_set_callback().

Function Documentation

int ast_rtcp_fd (  struct ast_rtp *  rtp  )


Definition at line 111 of file rtp.c.

References ast_rtp::rtcp, and ast_rtcp::s.

00112 {
00113    if (rtp->rtcp)
00114       return rtp->rtcp->s;
00115    return -1;
00116 }

struct ast_frame* ast_rtcp_read (  struct ast_rtp *  rtp  )


Definition at line 328 of file rtp.c.

References AST_FRAME_NULL, ast_log(), CRASH, LOG_DEBUG, LOG_WARNING, ast_rtp::nat, option_debug, ast_rtp::rtcp, ast_rtcp::s, ast_rtp::them, and ast_rtcp::them.

00329 {
00330    static struct ast_frame null_frame = { AST_FRAME_NULL, };
00331    int len;
00332    int hdrlen = 8;
00333    int res;
00334    struct sockaddr_in sin;
00335    unsigned int rtcpdata[1024];
00336
00337    if (!rtp->rtcp)
00338       return &null_frame;
00339
00340    len = sizeof(sin);
00341
00342    res = recvfrom(rtp->rtcp->s, rtcpdata, sizeof(rtcpdata),
00343                0, (struct sockaddr *)&sin, &len);
00344
00345    if (res < 0) {
00346       ast_log(LOG_WARNING, "RTP Read error: %s\n", strerror(errno));
00347       if (errno == EBADF)
00348          CRASH;
00349       return &null_frame;
00350    }
00351
00352    if (res < hdrlen) {
00353       ast_log(LOG_WARNING, "RTP Read too short\n");
00354       return &null_frame;
00355    }
00356
00357    if (rtp->nat) {
00358       /* Send to whoever sent to us */
00359       if ((rtp->rtcp->them.sin_addr.s_addr != sin.sin_addr.s_addr) ||
00360           (rtp->rtcp->them.sin_port != sin.sin_port)) {
00361          memcpy(&rtp->them, &sin, sizeof(rtp->them));
00362          ast_log(LOG_DEBUG, "RTP NAT: Using address %s:%d\n", inet_ntoa(rtp->rtcp->them.sin_addr), ntohs(rtp->rtcp->them.sin_port));
00363       }
00364    }
00365    if (option_debug)
00366       ast_log(LOG_DEBUG, "Got RTCP report of %d bytes\n", res);
00367    return &null_frame;
00368 }

int ast_rtp_bridge (  struct ast_channel *  c0,
struct ast_channel *  c1,
int  flags,
struct ast_frame **  fo,
struct ast_channel **  rc
)


Definition at line 1265 of file rtp.c.

References AST_BRIDGE_DTMF_CHANNEL_0, AST_BRIDGE_DTMF_CHANNEL_1, ast_check_hangup(), AST_FRAME_DTMF, AST_FRAME_VIDEO, AST_FRAME_VOICE, ast_frfree(), ast_log(), ast_mutex_lock, ast_mutex_unlock, ast_read(), ast_rtp_get_peer(), ast_waitfor_n(), ast_write(), ast_frame::frametype, ast_channel::lock, LOG_DEBUG, LOG_WARNING, ast_channel::name, ast_channel_pvt::pvt, and ast_channel::pvt.

01266 {
01267    struct ast_frame *f;
01268    struct ast_channel *who, *cs[3];
01269    struct ast_rtp *p0, *p1;
01270    struct ast_rtp *vp0, *vp1;
01271    struct ast_rtp_protocol *pr0, *pr1;
01272    struct sockaddr_in ac0, ac1;
01273    struct sockaddr_in vac0, vac1;
01274    struct sockaddr_in t0, t1;
01275    struct sockaddr_in vt0, vt1;
01276
01277    void *pvt0, *pvt1;
01278    int to;
01279    int codec0,codec1, oldcodec0, oldcodec1;
01280
01281    memset(&vt0, 0, sizeof(vt0));
01282    memset(&vt1, 0, sizeof(vt1));
01283    memset(&vac0, 0, sizeof(vac0));
01284    memset(&vac1, 0, sizeof(vac1));
01285
01286    /* if need DTMF, cant native bridge */
01287    if (flags & (AST_BRIDGE_DTMF_CHANNEL_0 | AST_BRIDGE_DTMF_CHANNEL_1))
01288       return -2;
01289    ast_mutex_lock(&c0->lock);
01290    ast_mutex_lock(&c1->lock);
01291    pr0 = get_proto(c0);
01292    pr1 = get_proto(c1);
01293    if (!pr0) {
01294       ast_log(LOG_WARNING, "Can't find native functions for channel '%s'\n", c0->name);
01295       ast_mutex_unlock(&c0->lock);
01296       ast_mutex_unlock(&c1->lock);
01297       return -1;
01298    }
01299    if (!pr1) {
01300       ast_log(LOG_WARNING, "Can't find native functions for channel '%s'\n", c1->name);
01301       ast_mutex_unlock(&c0->lock);
01302       ast_mutex_unlock(&c1->lock);
01303       return -1;
01304    }
01305    pvt0 = c0->pvt->pvt;
01306    pvt1 = c1->pvt->pvt;
01307    p0 = pr0->get_rtp_info(c0);
01308    if (pr0->get_vrtp_info)
01309       vp0 = pr0->get_vrtp_info(c0);
01310    else
01311       vp0 = NULL;
01312    p1 = pr1->get_rtp_info(c1);
01313    if (pr1->get_vrtp_info)
01314       vp1 = pr1->get_vrtp_info(c1);
01315    else
01316       vp1 = NULL;
01317    if (!p0 || !p1) {
01318       /* Somebody doesn't want to play... */
01319       ast_mutex_unlock(&c0->lock);
01320       ast_mutex_unlock(&c1->lock);
01321       return -2;
01322    }
01323    if (pr0->get_codec)
01324       codec0 = pr0->get_codec(c0);
01325    else
01326       codec0 = 0;
01327    if (pr1->get_codec)
01328       codec1 = pr1->get_codec(c1);
01329    else
01330       codec1 = 0;
01331    if (pr0->get_codec && pr1->get_codec) {
01332       /* Hey, we can't do reinvite if both parties speak diffrent codecs */
01333       if (!(codec0 & codec1)) {
01334          ast_log(LOG_WARNING, "codec0 = %d is not codec1 = %d, cannot native bridge.\n",codec0,codec1);
01335          ast_mutex_unlock(&c0->lock);
01336          ast_mutex_unlock(&c1->lock);
01337          return -2;
01338       }
01339    }
01340    if (pr0->set_rtp_peer(c0, p1, vp1, codec1))
01341       ast_log(LOG_WARNING, "Channel '%s' failed to talk to '%s'\n", c0->name, c1->name);
01342    else {
01343       /* Store RTP peer */
01344       ast_rtp_get_peer(p1, &ac1);
01345       if (vp1)
01346          ast_rtp_get_peer(vp1, &vac1);
01347    }
01348    if (pr1->set_rtp_peer(c1, p0, vp0, codec0))
01349       ast_log(LOG_WARNING, "Channel '%s' failed to talk back to '%s'\n", c1->name, c0->name);
01350    else {
01351       /* Store RTP peer */
01352       ast_rtp_get_peer(p0, &ac0);
01353       if (vp0)
01354          ast_rtp_get_peer(vp0, &vac0);
01355    }
01356    ast_mutex_unlock(&c0->lock);
01357    ast_mutex_unlock(&c1->lock);
01358    cs[0] = c0;
01359    cs[1] = c1;
01360    cs[2] = NULL;
01361    oldcodec0 = codec0;
01362    oldcodec1 = codec1;
01363    for (;;) {
01364       if ((c0->pvt->pvt != pvt0)  ||
01365          (c1->pvt->pvt != pvt1) ||
01366          (c0->masq || c0->masqr || c1->masq || c1->masqr)) {
01367             ast_log(LOG_DEBUG, "Oooh, something is weird, backing out\n");
01368             if (c0->pvt->pvt == pvt0) {
01369                if (pr0->set_rtp_peer(c0, NULL, NULL, 0))
01370                   ast_log(LOG_WARNING, "Channel '%s' failed to revert\n", c0->name);
01371             }
01372             if (c1->pvt->pvt == pvt1) {
01373                if (pr1->set_rtp_peer(c1, NULL, NULL, 0))
01374                   ast_log(LOG_WARNING, "Channel '%s' failed to revert back\n", c1->name);
01375             }
01376             /* Tell it to try again later */
01377             return -3;
01378       }
01379       to = -1;
01380       ast_rtp_get_peer(p1, &t1);
01381       ast_rtp_get_peer(p0, &t0);
01382       if (pr0->get_codec)
01383          codec0 = pr0->get_codec(c0);
01384       if (pr1->get_codec)
01385          codec1 = pr1->get_codec(c1);
01386       if (vp1)
01387          ast_rtp_get_peer(vp1, &vt1);
01388       if (vp0)
01389          ast_rtp_get_peer(vp0, &vt0);
01390       if (inaddrcmp(&t1, &ac1) || (vp1 && inaddrcmp(&vt1, &vac1)) || (codec1 != oldcodec1)) {
01391          ast_log(LOG_DEBUG, "Oooh, '%s' changed end address to %s:%d (format %d)\n",
01392             c1->name, inet_ntoa(t1.sin_addr), ntohs(t1.sin_port), codec1);
01393          ast_log(LOG_DEBUG, "Oooh, '%s' changed end vaddress to %s:%d (format %d)\n",
01394             c1->name, inet_ntoa(vt1.sin_addr), ntohs(vt1.sin_port), codec1);
01395          ast_log(LOG_DEBUG, "Oooh, '%s' was %s:%d/(format %d)\n",
01396             c1->name, inet_ntoa(ac1.sin_addr), ntohs(ac1.sin_port), oldcodec1);
01397          ast_log(LOG_DEBUG, "Oooh, '%s' wasv %s:%d/(format %d)\n",
01398             c1->name, inet_ntoa(vac1.sin_addr), ntohs(vac1.sin_port), oldcodec1);
01399          if (pr0->set_rtp_peer(c0, t1.sin_addr.s_addr ? p1 : NULL, vt1.sin_addr.s_addr ? vp1 : NULL, codec1))
01400             ast_log(LOG_WARNING, "Channel '%s' failed to update to '%s'\n", c0->name, c1->name);
01401          memcpy(&ac1, &t1, sizeof(ac1));
01402          memcpy(&vac1, &vt1, sizeof(vac1));
01403          oldcodec1 = codec1;
01404       }
01405       if (inaddrcmp(&t0, &ac0) || (vp0 && inaddrcmp(&vt0, &vac0))) {
01406          ast_log(LOG_DEBUG, "Oooh, '%s' changed end address to %s:%d (format %d)\n",
01407             c0->name, inet_ntoa(t0.sin_addr), ntohs(t0.sin_port), codec0);
01408          ast_log(LOG_DEBUG, "Oooh, '%s' was %s:%d/(format %d)\n",
01409             c0->name, inet_ntoa(ac0.sin_addr), ntohs(ac0.sin_port), oldcodec0);
01410          if (pr1->set_rtp_peer(c1, t0.sin_addr.s_addr ? p0 : NULL, vt0.sin_addr.s_addr ? vp0 : NULL, codec0))
01411             ast_log(LOG_WARNING, "Channel '%s' failed to update to '%s'\n", c1->name, c0->name);
01412          memcpy(&ac0, &t0, sizeof(ac0));
01413          memcpy(&vac0, &vt0, sizeof(vac0));
01414          oldcodec0 = codec0;
01415       }
01416       who = ast_waitfor_n(cs, 2, &to);
01417       if (!who) {
01418          ast_log(LOG_DEBUG, "Ooh, empty read...\n");
01419          /* check for hagnup / whentohangup */
01420          if (ast_check_hangup(c0) || ast_check_hangup(c1))
01421             break;
01422          continue;
01423       }
01424       f = ast_read(who);
01425       if (!f || ((f->frametype == AST_FRAME_DTMF) &&
01426                (((who == c0) && (flags & AST_BRIDGE_DTMF_CHANNEL_0)) ||
01427                 ((who == c1) && (flags & AST_BRIDGE_DTMF_CHANNEL_1))))) {
01428          *fo = f;
01429          *rc = who;
01430          ast_log(LOG_DEBUG, "Oooh, got a %s\n", f ? "digit" : "hangup");
01431          if ((c0->pvt->pvt == pvt0) && (!c0->_softhangup)) {
01432             if (pr0->set_rtp_peer(c0, NULL, NULL, 0))
01433                ast_log(LOG_WARNING, "Channel '%s' failed to revert\n", c0->name);
01434          }
01435          if ((c1->pvt->pvt == pvt1) && (!c1->_softhangup)) {
01436             if (pr1->set_rtp_peer(c1, NULL, NULL, 0))
01437                ast_log(LOG_WARNING, "Channel '%s' failed to revert back\n", c1->name);
01438          }
01439          /* That's all we needed */
01440          return 0;
01441       } else {
01442          if ((f->frametype == AST_FRAME_DTMF) ||
01443             (f->frametype == AST_FRAME_VOICE) ||
01444             (f->frametype == AST_FRAME_VIDEO)) {
01445             /* Forward voice or DTMF frames if they happen upon us */
01446             if (who == c0) {
01447                ast_write(c1, f);
01448             } else if (who == c1) {
01449                ast_write(c0, f);
01450             }
01451          }
01452          ast_frfree(f);
01453       }
01454       /* Swap priority not that it's a big deal at this point */
01455       cs[2] = cs[0];
01456       cs[0] = cs[1];
01457       cs[1] = cs[2];
01458
01459    }
01460    return -1;
01461 }

void ast_rtp_destroy (  struct ast_rtp *  rtp  )


Definition at line 892 of file rtp.c.

References ast_io_remove(), ast_smoother_free(), free, ast_rtp::io, ast_rtp::ioid, ast_rtp::rtcp, ast_rtcp::s, ast_rtp::s, and ast_rtp::smoother.

00893 {
00894    if (rtp->smoother)
00895       ast_smoother_free(rtp->smoother);
00896    if (rtp->ioid)
00897       ast_io_remove(rtp->io, rtp->ioid);
00898    if (rtp->s > -1)
00899       close(rtp->s);
00900    if (rtp->rtcp) {
00901       close(rtp->rtcp->s);
00902       free(rtp->rtcp);
00903    }
00904    free(rtp);
00905 }

int ast_rtp_fd (  struct ast_rtp *  rtp  )


Definition at line 106 of file rtp.c.

References ast_rtp::s.

00107 {
00108    return rtp->s;
00109 }

void ast_rtp_get_current_formats (  struct ast_rtp *  rtp,
int *  astFormats,
int *  nonAstFormats
)


Definition at line 672 of file rtp.c.

References rtpPayloadType::code, ast_rtp::current_RTP_PT, rtpPayloadType::isAstFormat, and MAX_RTP_PT.

00673                                                    {
00674   int pt;
00675
00676   *astFormats = *nonAstFormats = 0;
00677   for (pt = 0; pt < MAX_RTP_PT; ++pt) {
00678     if (rtp->current_RTP_PT[pt].isAstFormat) {
00679       *astFormats |= rtp->current_RTP_PT[pt].code;
00680     } else {
00681       *nonAstFormats |= rtp->current_RTP_PT[pt].code;
00682     }
00683   }
00684 }

void ast_rtp_get_peer (  struct ast_rtp *  rtp,
struct sockaddr_in *  them
)


Definition at line 870 of file rtp.c.

References ast_rtp::them.

Referenced by ast_rtp_bridge().

00871 {
00872    them->sin_family = AF_INET;
00873    them->sin_port = rtp->them.sin_port;
00874    them->sin_addr = rtp->them.sin_addr;
00875 }

void ast_rtp_get_us (  struct ast_rtp *  rtp,
struct sockaddr_in *  us
)


Definition at line 877 of file rtp.c.

References ast_rtp::us.

00878 {
00879    memcpy(us, &rtp->us, sizeof(rtp->us));
00880 }

void ast_rtp_init (  void   )


Definition at line 1496 of file rtp.c.

References ast_rtp_reload().

Referenced by main().

01497 {
01498    ast_rtp_reload();
01499 }

int ast_rtp_lookup_code (  struct ast_rtp *  rtp,
int  isAstFormat,
int  code
)


Definition at line 701 of file rtp.c.

References rtpPayloadType::code, ast_rtp::current_RTP_PT, rtpPayloadType::isAstFormat, MAX_RTP_PT, ast_rtp::rtp_lookup_code_cache_code, ast_rtp::rtp_lookup_code_cache_isAstFormat, and ast_rtp::rtp_lookup_code_cache_result.

Referenced by ast_rtp_write().

00701                                                                         {
00702   int pt;
00703
00704   /* Looks up an RTP code out of our *static* outbound list */
00705
00706   if (isAstFormat == rtp->rtp_lookup_code_cache_isAstFormat &&
00707       code == rtp->rtp_lookup_code_cache_code) {
00708     // Use our cached mapping, to avoid the overhead of the loop below
00709     return rtp->rtp_lookup_code_cache_result;
00710   }
00711
00712    /* Check the dynamic list first */
00713   for (pt = 0; pt < MAX_RTP_PT; ++pt) {
00714     if (rtp->current_RTP_PT[pt].code == code &&
00715       rtp->current_RTP_PT[pt].isAstFormat == isAstFormat) {
00716       rtp->rtp_lookup_code_cache_isAstFormat = isAstFormat;
00717       rtp->rtp_lookup_code_cache_code = code;
00718       rtp->rtp_lookup_code_cache_result = pt;
00719       return pt;
00720     }
00721   }
00722
00723    /* Then the static list */
00724   for (pt = 0; pt < MAX_RTP_PT; ++pt) {
00725     if (static_RTP_PT[pt].code == code &&
00726       static_RTP_PT[pt].isAstFormat == isAstFormat) {
00727       rtp->rtp_lookup_code_cache_isAstFormat = isAstFormat;
00728       rtp->rtp_lookup_code_cache_code = code;
00729       rtp->rtp_lookup_code_cache_result = pt;
00730       return pt;
00731     }
00732   }
00733   return -1;
00734 }

char* ast_rtp_lookup_mime_subtype (  int  isAstFormat,
int  code
)


Definition at line 736 of file rtp.c.

00736                                                              {
00737   int i;
00738
00739   for (i = 0; i < sizeof mimeTypes/sizeof mimeTypes[0]; ++i) {
00740     if (mimeTypes[i].payloadType.code == code &&
00741    mimeTypes[i].payloadType.isAstFormat == isAstFormat) {
00742       return mimeTypes[i].subtype;
00743     }
00744   }
00745   return "";
00746 }

struct rtpPayloadType ast_rtp_lookup_pt (  struct ast_rtp *  rtp,
int  pt
)


Definition at line 686 of file rtp.c.

References ast_rtp_lookup_pt(), rtpPayloadType::code, rtpPayloadType::isAstFormat, and MAX_RTP_PT.

Referenced by ast_rtp_lookup_pt(), and ast_rtp_read().

00687 {
00688   struct rtpPayloadType result;
00689   if (pt < 0 || pt > MAX_RTP_PT) {
00690     result.isAstFormat = result.code = 0;
00691     return result; // bogus payload type
00692   }
00693   /* Start with the negotiated codecs */
00694   result = rtp->current_RTP_PT[pt];
00695   /* If it doesn't exist, check our static RTP type list, just in case */
00696   if (!result.code)
00697    result = static_RTP_PT[pt];
00698   return result;
00699 }

struct ast_rtp* ast_rtp_new (  struct sched_context *  sched,
struct io_context *  io,
int  rtcpenable,
int  callbackmode
)


Definition at line 777 of file rtp.c.

References ast_io_add(), AST_IO_IN, ast_log(), ast_rtp_pt_default(), free, LOG_WARNING, and malloc.

00778 {
00779    struct ast_rtp *rtp;
00780    int x;
00781    int first;
00782    int startplace;
00783    rtp = malloc(sizeof(struct ast_rtp));
00784    if (!rtp)
00785       return NULL;
00786    memset(rtp, 0, sizeof(struct ast_rtp));
00787    rtp->them.sin_family = AF_INET;
00788    rtp->us.sin_family = AF_INET;
00789    rtp->s = rtp_socket();
00790    rtp->ssrc = rand();
00791    rtp->seqno = rand() & 0xffff;
00792    if (rtp->s < 0) {
00793       free(rtp);
00794       ast_log(LOG_WARNING, "Unable to allocate socket: %s\n", strerror(errno));
00795       return NULL;
00796    }
00797    if (sched && rtcpenable) {
00798       rtp->sched = sched;
00799       rtp->rtcp = ast_rtcp_new();
00800    }
00801    /* Find us a place */
00802    x = (rand() % (rtpend-rtpstart)) + rtpstart;
00803    x = x & ~1;
00804    startplace = x;
00805    for (;;) {
00806       /* Must be an even port number by RTP spec */
00807       rtp->us.sin_port = htons(x);
00808       if (rtp->rtcp)
00809          rtp->rtcp->us.sin_port = htons(x + 1);
00810       if (!(first = bind(rtp->s, (struct sockaddr *)&rtp->us, sizeof(rtp->us))) &&
00811          (!rtp->rtcp || !bind(rtp->rtcp->s, (struct sockaddr *)&rtp->rtcp->us, sizeof(rtp->rtcp->us))))
00812          break;
00813       if (!first) {
00814          /* Primary bind succeeded! Gotta recreate it */
00815          close(rtp->s);
00816          rtp->s = rtp_socket();
00817       }
00818       if (errno != EADDRINUSE) {
00819          ast_log(LOG_WARNING, "Unexpected bind error: %s\n", strerror(errno));
00820          close(rtp->s);
00821          if (rtp->rtcp) {
00822             close(rtp->rtcp->s);
00823             free(rtp->rtcp);
00824          }
00825          free(rtp);
00826          return NULL;
00827       }
00828       x += 2;
00829       if (x > rtpend)
00830          x = (rtpstart + 1) & ~1;
00831       if (x == startplace) {
00832          ast_log(LOG_WARNING, "No RTP ports remaining\n");
00833          close(rtp->s);
00834          if (rtp->rtcp) {
00835             close(rtp->rtcp->s);
00836             free(rtp->rtcp);
00837          }
00838          free(rtp);
00839          return NULL;
00840       }
00841    }
00842    if (io && sched && callbackmode) {
00843       /* Operate this one in a callback mode */
00844       rtp->sched = sched;
00845       rtp->io = io;
00846       rtp->ioid = ast_io_add(rtp->io, rtp->s, rtpread, AST_IO_IN, rtp);
00847    }
00848    ast_rtp_pt_default(rtp);
00849    return rtp;
00850 }

int ast_rtp_proto_register (  struct ast_rtp_protocol *  proto  )


Definition at line 1236 of file rtp.c.

References ast_log(), LOG_WARNING, ast_rtp_protocol::next, and ast_rtp_protocol::type.

01237 {
01238    struct ast_rtp_protocol *cur;
01239    cur = protos;
01240    while(cur) {
01241       if (cur->type == proto->type) {
01242          ast_log(LOG_WARNING, "Tried to register same protocol '%s' twice\n", cur->type);
01243          return -1;
01244       }
01245       cur = cur->next;
01246    }
01247    proto->next = protos;
01248    protos = proto;
01249    return 0;
01250 }

void ast_rtp_proto_unregister (  struct ast_rtp_protocol *  proto  )


Definition at line 1218 of file rtp.c.

References ast_rtp_protocol::next.

01219 {
01220    struct ast_rtp_protocol *cur, *prev;
01221    cur = protos;
01222    prev = NULL;
01223    while(cur) {
01224       if (cur == proto) {
01225          if (prev)
01226             prev->next = proto->next;
01227          else
01228             protos = proto->next;
01229          return;
01230       }
01231       prev = cur;
01232       cur = cur->next;
01233    }
01234 }

void ast_rtp_pt_clear (  struct ast_rtp *  rtp  )


Definition at line 614 of file rtp.c.

References rtpPayloadType::code, ast_rtp::current_RTP_PT, rtpPayloadType::isAstFormat, MAX_RTP_PT, ast_rtp::rtp_lookup_code_cache_code, ast_rtp::rtp_lookup_code_cache_isAstFormat, and ast_rtp::rtp_lookup_code_cache_result.

00615 {
00616   int i;
00617
00618   for (i = 0; i < MAX_RTP_PT; ++i) {
00619     rtp->current_RTP_PT[i].isAstFormat = 0;
00620     rtp->current_RTP_PT[i].code = 0;
00621   }
00622
00623   rtp->rtp_lookup_code_cache_isAstFormat = 0;
00624   rtp->rtp_lookup_code_cache_code = 0;
00625   rtp->rtp_lookup_code_cache_result = 0;
00626 }

void ast_rtp_pt_default (  struct ast_rtp *  rtp  )


Definition at line 628 of file rtp.c.

References rtpPayloadType::code, ast_rtp::current_RTP_PT, rtpPayloadType::isAstFormat, MAX_RTP_PT, ast_rtp::rtp_lookup_code_cache_code, ast_rtp::rtp_lookup_code_cache_isAstFormat, and ast_rtp::rtp_lookup_code_cache_result.

Referenced by ast_rtp_new().

00629 {
00630   int i;
00631   /* Initialize to default payload types */
00632   for (i = 0; i < MAX_RTP_PT; ++i) {
00633     rtp->current_RTP_PT[i].isAstFormat = static_RTP_PT[i].isAstFormat;
00634     rtp->current_RTP_PT[i].code = static_RTP_PT[i].code;
00635   }
00636
00637   rtp->rtp_lookup_code_cache_isAstFormat = 0;
00638   rtp->rtp_lookup_code_cache_code = 0;
00639   rtp->rtp_lookup_code_cache_result = 0;
00640 }

struct ast_frame* ast_rtp_read (  struct ast_rtp *  rtp  )


Definition at line 391 of file rtp.c.

References AST_FORMAT_ADPCM, AST_FORMAT_ALAW, AST_FORMAT_G723_1, AST_FORMAT_G726, AST_FORMAT_G729A, AST_FORMAT_GSM, AST_FORMAT_ILBC, AST_FORMAT_MAX_AUDIO, AST_FORMAT_SLINEAR, AST_FORMAT_SPEEX, AST_FORMAT_ULAW, AST_FRAME_NULL, AST_FRAME_VIDEO, AST_FRAME_VOICE, AST_FRIENDLY_OFFSET, ast_getformatname(), ast_log(), AST_RTP_CISCO_DTMF, AST_RTP_CN, AST_RTP_DTMF, ast_rtp_lookup_pt(), rtpPayloadType::code, CRASH, ast_frame::data, ast_frame::datalen, ast_frame::delivery, ast_rtp::dtmfcount, ast_rtp::f, ast_frame::frametype, rtpPayloadType::isAstFormat, ast_rtp::lasteventseqn, ast_rtp::lastividtimestamp, ast_rtp::lastrxformat, ast_rtp::lastrxts, LOG_DEBUG, LOG_NOTICE, LOG_WARNING, ast_frame::mallocd, ast_rtp::nat, ast_frame::offset, ast_rtp::rawdata, ast_rtp::resp, ast_rtp::s, ast_frame::samples, ast_frame::src, ast_frame::subclass, and ast_rtp::them.

00392 {
00393    int res;
00394    struct sockaddr_in sin;
00395    int len;
00396    unsigned int seqno;
00397    int payloadtype;
00398    int hdrlen = 12;
00399    int mark;
00400    unsigned int timestamp;
00401    unsigned int *rtpheader;
00402    static struct ast_frame *f, null_frame = { AST_FRAME_NULL, };
00403    struct rtpPayloadType rtpPT;
00404
00405    len = sizeof(sin);
00406
00407    /* Cache where the header will go */
00408    res = recvfrom(rtp->s, rtp->rawdata + AST_FRIENDLY_OFFSET, sizeof(rtp->rawdata) - AST_FRIENDLY_OFFSET,
00409                0, (struct sockaddr *)&sin, &len);
00410
00411
00412    rtpheader = (unsigned int *)(rtp->rawdata + AST_FRIENDLY_OFFSET);
00413    if (res < 0) {
00414       if (errno == EAGAIN)
00415          ast_log(LOG_NOTICE, "RTP: Received packet with bad UDP checksum\n");
00416       else
00417          ast_log(LOG_WARNING, "RTP Read error: %s\n", strerror(errno));
00418       if (errno == EBADF)
00419          CRASH;
00420       return &null_frame;
00421    }
00422    if (res < hdrlen) {
00423       ast_log(LOG_WARNING, "RTP Read too short\n");
00424       return &null_frame;
00425    }
00426
00427    /* Ignore if the other side hasn't been given an address
00428       yet.  */
00429    if (!rtp->them.sin_addr.s_addr || !rtp->them.sin_port)
00430       return &null_frame;
00431
00432    if (rtp->nat) {
00433       /* Send to whoever sent to us */
00434       if ((rtp->them.sin_addr.s_addr != sin.sin_addr.s_addr) ||
00435           (rtp->them.sin_port != sin.sin_port)) {
00436          memcpy(&rtp->them, &sin, sizeof(rtp->them));
00437          ast_log(LOG_DEBUG, "RTP NAT: Using address %s:%d\n", inet_ntoa(rtp->them.sin_addr), ntohs(rtp->them.sin_port));
00438       }
00439    }
00440
00441    /* Get fields */
00442    seqno = ntohl(rtpheader[0]);
00443    payloadtype = (seqno & 0x7f0000) >> 16;
00444    mark = seqno & (1 << 23);
00445    seqno &= 0xffff;
00446    timestamp = ntohl(rtpheader[1]);
00447
00448 #if 0
00449    printf("Got RTP packet from %s:%d (type %d, seq %d, ts %d, len = %d)\n", inet_ntoa(sin.sin_addr), ntohs(sin.sin_port), payloadtype, seqno, timestamp,res - hdrlen);
00450 #endif
00451    rtpPT = ast_rtp_lookup_pt(rtp, payloadtype);
00452    if (!rtpPT.isAstFormat) {
00453      // This is special in-band data that's not one of our codecs
00454      if (rtpPT.code == AST_RTP_DTMF) {
00455        /* It's special -- rfc2833 process it */
00456        if (rtp->lasteventseqn <= seqno) {
00457          f = process_rfc2833(rtp, rtp->rawdata + AST_FRIENDLY_OFFSET + hdrlen, res - hdrlen);
00458          rtp->lasteventseqn = seqno;
00459        }
00460        if (f) return f; else return &null_frame;
00461      } else if (rtpPT.code == AST_RTP_CISCO_DTMF) {
00462        /* It's really special -- process it the Cisco way */
00463        if (rtp->lasteventseqn <= seqno) {
00464          f = process_cisco_dtmf(rtp, rtp->rawdata + AST_FRIENDLY_OFFSET + hdrlen, res - hdrlen);
00465          rtp->lasteventseqn = seqno;
00466        }
00467        if (f) return f; else return &null_frame;
00468      } else if (rtpPT.code == AST_RTP_CN) {
00469        /* Comfort Noise */
00470        f = process_rfc3389(rtp, rtp->rawdata + AST_FRIENDLY_OFFSET + hdrlen, res - hdrlen);
00471        if (f) return f; else return &null_frame;
00472      } else {
00473        ast_log(LOG_NOTICE, "Unknown RTP codec %d received\n", payloadtype);
00474        return &null_frame;
00475      }
00476    }
00477    rtp->f.subclass = rtpPT.code;
00478    if (rtp->f.subclass < AST_FORMAT_MAX_AUDIO)
00479       rtp->f.frametype = AST_FRAME_VOICE;
00480    else
00481       rtp->f.frametype = AST_FRAME_VIDEO;
00482    rtp->lastrxformat = rtp->f.subclass;
00483
00484    if (!rtp->lastrxts)
00485       rtp->lastrxts = timestamp;
00486
00487    if (rtp->dtmfcount) {
00488 #if 0
00489       printf("dtmfcount was %d\n", rtp->dtmfcount);
00490 #endif
00491       rtp->dtmfcount -= (timestamp - rtp->lastrxts);
00492       if (rtp->dtmfcount < 0)
00493          rtp->dtmfcount = 0;
00494 #if 0
00495       if (dtmftimeout != rtp->dtmfcount)
00496          printf("dtmfcount is %d\n", rtp->dtmfcount);
00497 #endif
00498    }
00499    rtp->lastrxts = timestamp;
00500
00501    /* Send any pending DTMF */
00502    if (rtp->resp && !rtp->dtmfcount) {
00503       ast_log(LOG_DEBUG, "Sending pending DTMF\n");
00504       return send_dtmf(rtp);
00505    }
00506    rtp->f.mallocd = 0;
00507    rtp->f.datalen = res - hdrlen;
00508    rtp->f.data = rtp->rawdata + hdrlen + AST_FRIENDLY_OFFSET;
00509    rtp->f.offset = hdrlen + AST_FRIENDLY_OFFSET;
00510    if (rtp->f.subclass < AST_FORMAT_MAX_AUDIO) {
00511       switch(rtp->f.subclass) {
00512       case AST_FORMAT_ULAW:
00513       case AST_FORMAT_ALAW:
00514          rtp->f.samples = rtp->f.datalen;
00515          break;
00516       case AST_FORMAT_SLINEAR:
00517          rtp->f.samples = rtp->f.datalen / 2;
00518          break;
00519       case AST_FORMAT_GSM:
00520          rtp->f.samples = 160 * (rtp->f.datalen / 33);
00521          break;
00522       case AST_FORMAT_ILBC:
00523          rtp->f.samples = 240 * (rtp->f.datalen / 50);
00524          break;
00525       case AST_FORMAT_ADPCM:
00526       case AST_FORMAT_G726:
00527          rtp->f.samples = rtp->f.datalen * 2;
00528          break;
00529       case AST_FORMAT_G729A:
00530          rtp->f.samples = rtp->f.datalen * 8;
00531          break;
00532       case AST_FORMAT_G723_1:
00533          rtp->f.samples = g723_samples(rtp->f.data, rtp->f.datalen);
00534          break;
00535       case AST_FORMAT_SPEEX:
00536               rtp->f.samples = 160;
00537          // assumes that the RTP packet contained one Speex frame
00538          break;
00539       default:
00540          ast_log(LOG_NOTICE, "Unable to calculate samples for format %s\n", ast_getformatname(rtp->f.subclass));
00541          break;
00542       }
00543       calc_rxstamp(&rtp->f.delivery, rtp, timestamp, mark);
00544    } else {
00545       /* Video -- samples is # of samples vs. 90000 */
00546       if (!rtp->lastividtimestamp)
00547          rtp->lastividtimestamp = timestamp;
00548       rtp->f.samples = timestamp - rtp->lastividtimestamp;
00549       rtp->lastividtimestamp = timestamp;
00550       rtp->f.delivery.tv_sec = 0;
00551       rtp->f.delivery.tv_usec = 0;
00552       if (mark)
00553          rtp->f.subclass |= 0x1;
00554
00555    }
00556    rtp->f.src = "RTP";
00557    return &rtp->f;
00558 }

void ast_rtp_reload (  void   )


Definition at line 1463 of file rtp.c.

References ast_destroy(), ast_load(), ast_log(), ast_variable_retrieve(), ast_verbose(), LOG_WARNING, option_verbose, s, and VERBOSE_PREFIX_2.

Referenced by ast_module_reload(), and ast_rtp_init().

01464 {
01465    struct ast_config *cfg;
01466    char *s;
01467    rtpstart = 5000;
01468    rtpend = 31000;
01469    cfg = ast_load("rtp.conf");
01470    if (cfg) {
01471       if ((s = ast_variable_retrieve(cfg, "general", "rtpstart"))) {
01472          rtpstart = atoi(s);
01473          if (rtpstart < 1024)
01474             rtpstart = 1024;
01475          if (rtpstart > 65535)
01476             rtpstart = 65535;
01477       }
01478       if ((s = ast_variable_retrieve(cfg, "general", "rtpend"))) {
01479          rtpend = atoi(s);
01480          if (rtpend < 1024)
01481             rtpend = 1024;
01482          if (rtpend > 65535)
01483             rtpend = 65535;
01484       }
01485       ast_destroy(cfg);
01486    }
01487    if (rtpstart >= rtpend) {
01488       ast_log(LOG_WARNING, "Unreasonable values for RTP start/end\n");
01489       rtpstart = 5000;
01490       rtpend = 31000;
01491    }
01492    if (option_verbose > 1)
01493       ast_verbose(VERBOSE_PREFIX_2 "RTP Allocating from port range %d -> %d\n", rtpstart, rtpend);
01494 }

int ast_rtp_senddigit (  struct ast_rtp *  rtp,
char  digit
)


Definition at line 932 of file rtp.c.

References ast_log(), ast_rtp::dtmfmute, ast_rtp::lastts, LOG_NOTICE, LOG_WARNING, ast_rtp::s, ast_rtp::seqno, ast_rtp::ssrc, and ast_rtp::them.

00933 {
00934    unsigned int *rtpheader;
00935    int hdrlen = 12;
00936    int res;
00937    int ms;
00938    int x;
00939    char data[256];
00940
00941    if ((digit <= '9') && (digit >= '0'))
00942       digit -= '0';
00943    else if (digit == '*')
00944       digit = 10;
00945    else if (digit == '#')
00946       digit = 11;
00947    else if ((digit >= 'A') && (digit <= 'D'))
00948       digit = digit - 'A' + 12;
00949    else if ((digit >= 'a') && (digit <= 'd'))
00950       digit = digit - 'a' + 12;
00951    else {
00952       ast_log(LOG_WARNING, "Don't know how to represent '%c'\n", digit);
00953       return -1;
00954    }
00955
00956
00957    /* If we have no peer, return immediately */
00958    if (!rtp->them.sin_addr.s_addr)
00959       return 0;
00960
00961    gettimeofday(&rtp->dtmfmute, NULL);
00962    rtp->dtmfmute.tv_usec += (500 * 1000);
00963    if (rtp->dtmfmute.tv_usec > 1000000) {
00964       rtp->dtmfmute.tv_usec -= 1000000;
00965       rtp->dtmfmute.tv_sec += 1;
00966    }
00967
00968    ms = calc_txstamp(rtp, NULL);
00969    /* Default prediction */
00970    rtp->lastts = rtp->lastts + ms * 8;
00971
00972    /* Get a pointer to the header */
00973    rtpheader = (unsigned int *)data;
00974    rtpheader[0] = htonl((2 << 30) | (1 << 23) | (101 << 16) | (rtp->seqno++));
00975    rtpheader[1] = htonl(rtp->lastts);
00976    rtpheader[2] = htonl(rtp->ssrc);
00977    rtpheader[3] = htonl((digit << 24) | (0xa << 16) | (0));
00978    for (x=0;x<4;x++) {
00979       if (rtp->them.sin_port && rtp->them.sin_addr.s_addr) {
00980          res = sendto(rtp->s, (void *)rtpheader, hdrlen + 4, 0, (struct sockaddr *)&rtp->them, sizeof(rtp->them));
00981          if (res <0)
00982             ast_log(LOG_NOTICE, "RTP Transmission error to %s:%d: %s\n", inet_ntoa(rtp->them.sin_addr), ntohs(rtp->them.sin_port), strerror(errno));
00983    #if 0
00984       printf("Sent %d bytes of RTP data to %s:%d\n", res, inet_ntoa(rtp->them.sin_addr), ntohs(rtp->them.sin_port));
00985    #endif
00986       }
00987       if (x ==0) {
00988          /* Clear marker bit and increment seqno */
00989          rtpheader[0] = htonl((2 << 30)  | (101 << 16) | (rtp->seqno++));
00990          /* Make duration 800 (100ms) */
00991          rtpheader[3] |= htonl((800));
00992          /* Set the End bit for the last 3 */
00993          rtpheader[3] |= htonl((1 << 23));
00994       }
00995    }
00996    return 0;
00997 }

void ast_rtp_set_callback (  struct ast_rtp *  rtp,
ast_rtp_callback  callback
)


Definition at line 159 of file rtp.c.

References ast_rtp_callback, and ast_rtp::callback.

00160 {
00161    rtp->callback = callback;
00162 }

void ast_rtp_set_data (  struct ast_rtp *  rtp,
void *  data
)


Definition at line 154 of file rtp.c.

References ast_rtp::data.

00155 {
00156    rtp->data = data;
00157 }

void ast_rtp_set_m_type (  struct ast_rtp *  rtp,
int  pt
)


Definition at line 645 of file rtp.c.

References rtpPayloadType::code, ast_rtp::current_RTP_PT, and MAX_RTP_PT.

00645                                                      {
00646   if (pt < 0 || pt > MAX_RTP_PT) return; // bogus payload type
00647
00648   if (static_RTP_PT[pt].code != 0) {
00649     rtp->current_RTP_PT[pt] = static_RTP_PT[pt];
00650   }
00651 }

void ast_rtp_set_peer (  struct ast_rtp *  rtp,
struct sockaddr_in *  them
)


Definition at line 860 of file rtp.c.

References ast_rtp::rtcp, ast_rtcp::them, and ast_rtp::them.

00861 {
00862    rtp->them.sin_port = them->sin_port;
00863    rtp->them.sin_addr = them->sin_addr;
00864    if (rtp->rtcp) {
00865       rtp->rtcp->them.sin_port = htons(ntohs(them->sin_port) + 1);
00866       rtp->rtcp->them.sin_addr = them->sin_addr;
00867    }
00868 }

void ast_rtp_set_rtpmap_type (  struct ast_rtp *  rtp,
int  pt,
char *  mimeType,
char *  mimeSubtype
)


Definition at line 655 of file rtp.c.

References ast_rtp::current_RTP_PT, MAX_RTP_PT, subtype, and type.

00656                                              {
00657   int i;
00658
00659   if (pt < 0 || pt > MAX_RTP_PT) return; // bogus payload type
00660
00661   for (i = 0; i < sizeof mimeTypes/sizeof mimeTypes[0]; ++i) {
00662     if (strcasecmp(mimeSubtype, mimeTypes[i].subtype) == 0 &&
00663    strcasecmp(mimeType, mimeTypes[i].type) == 0) {
00664       rtp->current_RTP_PT[pt] = mimeTypes[i].payloadType;
00665       return;
00666     }
00667   }
00668 }

void ast_rtp_setnat (  struct ast_rtp *  rtp,
int  nat
)


Definition at line 164 of file rtp.c.

References ast_rtp::nat.

00165 {
00166    rtp->nat = nat;
00167 }

int ast_rtp_settos (  struct ast_rtp *  rtp,
int  tos
)


Definition at line 852 of file rtp.c.

References ast_log(), LOG_WARNING, and ast_rtp::s.

00853 {
00854    int res;
00855    if ((res = setsockopt(rtp->s, IPPROTO_IP, IP_TOS, &tos, sizeof(tos))))
00856       ast_log(LOG_WARNING, "Unable to set TOS to %d\n", tos);
00857    return res;
00858 }

void ast_rtp_stop (  struct ast_rtp *  rtp  )


Definition at line 882 of file rtp.c.

References ast_rtp::rtcp, ast_rtcp::them, and ast_rtp::them.

00883 {
00884    memset(&rtp->them.sin_addr, 0, sizeof(rtp->them.sin_addr));
00885    memset(&rtp->them.sin_port, 0, sizeof(rtp->them.sin_port));
00886    if (rtp->rtcp) {
00887       memset(&rtp->rtcp->them.sin_addr, 0, sizeof(rtp->them.sin_addr));
00888       memset(&rtp->rtcp->them.sin_port, 0, sizeof(rtp->them.sin_port));
00889    }
00890 }

int ast_rtp_write (  struct ast_rtp *  rtp,
struct ast_frame *  f
)


Definition at line 1089 of file rtp.c.

References AST_FORMAT_ADPCM, AST_FORMAT_ALAW, AST_FORMAT_G723_1, AST_FORMAT_G726, AST_FORMAT_G729A, AST_FORMAT_GSM, AST_FORMAT_H261, AST_FORMAT_H263, AST_FORMAT_ILBC, AST_FORMAT_SPEEX, AST_FORMAT_ULAW, AST_FRAME_VIDEO, AST_FRAME_VOICE, ast_frdup(), ast_getformatname(), ast_log(), ast_rtp_lookup_code(), ast_smoother_feed(), AST_SMOOTHER_FLAG_G729, ast_smoother_free(), ast_smoother_new(), ast_smoother_read(), ast_smoother_set_flags(), ast_frame::datalen, ast_frame::frametype, ast_rtp::lasttxformat, LOG_DEBUG, LOG_WARNING, ast_frame::offset, ast_rtp::smoother, ast_frame::subclass, and ast_rtp::them.

01090 {
01091    struct ast_frame *f;
01092    int codec;
01093    int hdrlen = 12;
01094    int subclass;
01095
01096
01097    /* If we have no peer, return immediately */
01098    if (!rtp->them.sin_addr.s_addr)
01099       return 0;
01100
01101    /* If there is no data length, return immediately */
01102    if (!_f->datalen)
01103       return 0;
01104
01105    /* Make sure we have enough space for RTP header */
01106    if ((_f->frametype != AST_FRAME_VOICE) && (_f->frametype != AST_FRAME_VIDEO)) {
01107       ast_log(LOG_WARNING, "RTP can only send voice\n");
01108       return -1;
01109    }
01110
01111    subclass = _f->subclass;
01112    if (_f->frametype == AST_FRAME_VIDEO)
01113       subclass &= ~0x1;
01114
01115    codec = ast_rtp_lookup_code(rtp, 1, subclass);
01116    if (codec < 0) {
01117       ast_log(LOG_WARNING, "Don't know how to send format %s packets with RTP\n", ast_getformatname(_f->subclass));
01118       return -1;
01119    }
01120
01121    if (rtp->lasttxformat != subclass) {
01122       /* New format, reset the smoother */
01123       ast_log(LOG_DEBUG, "Ooh, format changed from %s to %s\n", ast_getformatname(rtp->lasttxformat), ast_getformatname(subclass));
01124       rtp->lasttxformat = subclass;
01125       if (rtp->smoother)
01126          ast_smoother_free(rtp->smoother);
01127       rtp->smoother = NULL;
01128    }
01129
01130
01131    switch(subclass) {
01132    case AST_FORMAT_ULAW:
01133    case AST_FORMAT_ALAW:
01134       if (!rtp->smoother) {
01135          rtp->smoother = ast_smoother_new(160);
01136       }
01137       if (!rtp->smoother) {
01138          ast_log(LOG_WARNING, "Unable to create smoother :(\n");
01139          return -1;
01140       }
01141       ast_smoother_feed(rtp->smoother, _f);
01142
01143       while((f = ast_smoother_read(rtp->smoother)))
01144          ast_rtp_raw_write(rtp, f, codec);
01145       break;
01146    case AST_FORMAT_ADPCM:
01147    case AST_FORMAT_G726:
01148       if (!rtp->smoother) {
01149          rtp->smoother = ast_smoother_new(80);
01150       }
01151       if (!rtp->smoother) {
01152          ast_log(LOG_WARNING, "Unable to create smoother :(\n");
01153          return -1;
01154       }
01155       ast_smoother_feed(rtp->smoother, _f);
01156
01157       while((f = ast_smoother_read(rtp->smoother)))
01158          ast_rtp_raw_write(rtp, f, codec);
01159       break;
01160    case AST_FORMAT_G729A:
01161       if (!rtp->smoother) {
01162          rtp->smoother = ast_smoother_new(20);
01163          if (rtp->smoother)
01164             ast_smoother_set_flags(rtp->smoother, AST_SMOOTHER_FLAG_G729);
01165       }
01166       if (!rtp->smoother) {
01167          ast_log(LOG_WARNING, "Unable to create g729 smoother :(\n");
01168          return -1;
01169       }
01170       ast_smoother_feed(rtp->smoother, _f);
01171
01172       while((f = ast_smoother_read(rtp->smoother)))
01173          ast_rtp_raw_write(rtp, f, codec);
01174       break;
01175    case AST_FORMAT_GSM:
01176       if (!rtp->smoother) {
01177          rtp->smoother = ast_smoother_new(33);
01178       }
01179       if (!rtp->smoother) {
01180          ast_log(LOG_WARNING, "Unable to create GSM smoother :(\n");
01181          return -1;
01182       }
01183       ast_smoother_feed(rtp->smoother, _f);
01184       while((f = ast_smoother_read(rtp->smoother)))
01185          ast_rtp_raw_write(rtp, f, codec);
01186       break;
01187    case AST_FORMAT_ILBC:
01188       if (!rtp->smoother) {
01189          rtp->smoother = ast_smoother_new(50);
01190       }
01191       if (!rtp->smoother) {
01192          ast_log(LOG_WARNING, "Unable to create ILBC smoother :(\n");
01193          return -1;
01194       }
01195       ast_smoother_feed(rtp->smoother, _f);
01196       while((f = ast_smoother_read(rtp->smoother)))
01197          ast_rtp_raw_write(rtp, f, codec);
01198       break;
01199    default:
01200       ast_log(LOG_WARNING, "Not sure about sending format %s packets\n", ast_getformatname(subclass));
01201       // fall through to...
01202    case AST_FORMAT_H261:
01203    case AST_FORMAT_H263:
01204    case AST_FORMAT_G723_1:
01205    case AST_FORMAT_SPEEX:
01206            // Don't buffer outgoing frames; send them one-per-packet:
01207       if (_f->offset < hdrlen) {
01208          f = ast_frdup(_f);
01209       } else {
01210          f = _f;
01211       }
01212       ast_rtp_raw_write(rtp, f, codec);
01213    }
01214
01215    return 0;
01216 }

Generated on Sat Jun 12 16:41:46 2004 for Asterisk by doxygen 1.3.7
